Запчасти Case 580SN (88.100.82[04]) - DIA KIT, BUCKET 82 INCH 4 IN 1 (88) - ACCESSORIES

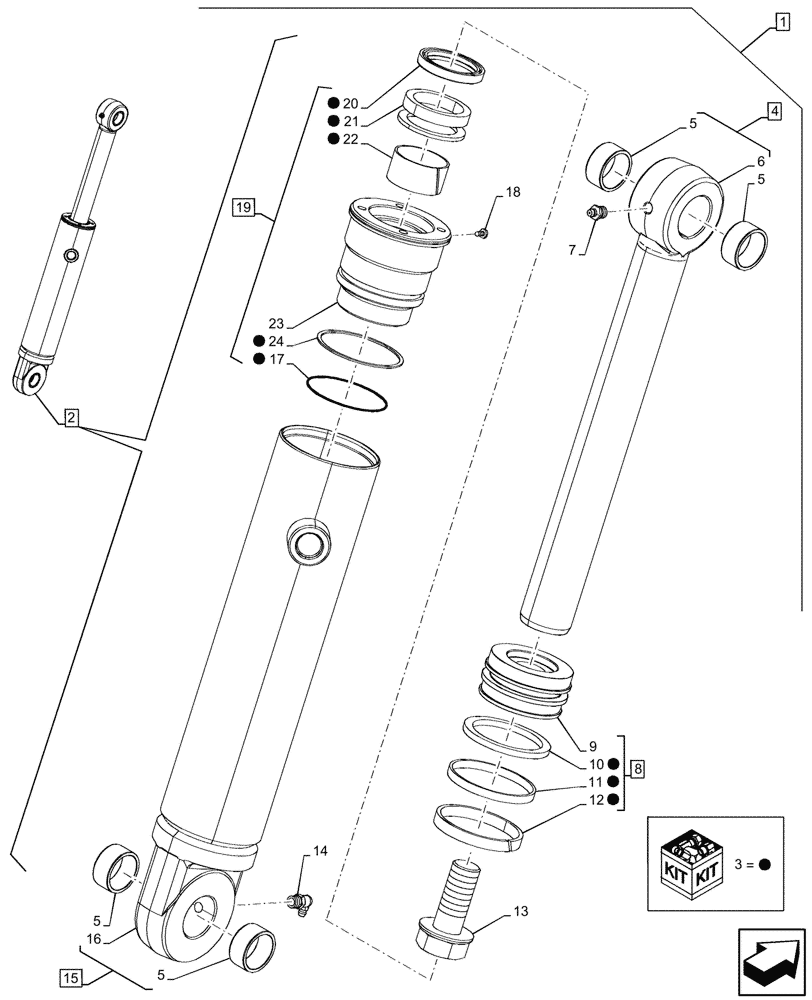

Схема запчастей Case 580SN - (88.100.82[04]) - DIA KIT, BUCKET 82 INCH 4 IN 1 (88) - ACCESSORIES
23
14
11
22
20
3
5
19
7
5
2
16
5
1
3
3
13
10
3
9
12
18
6
3
3
5
3
21
8
3
17
15
3
4
24

Артикул

Название

Примечание

Количество

1

84571019

BUCKET

Kit, Bucket 82 Inch 4 IN 1, Incl 2 - 24

1шт.

2

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

ASSY, Incl 2 - 24

1шт.

3

86982377

SEAL KIT

Incl 10 - 12, 17, 20 - 22, 24

1шт.

4

1346195C1

PISTON ROD

ASSY, Incl 5 (Qty2), 6

1шт.

5

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

6

NSS

NOT SOLD SEPARAT

Rod, Incl in 3

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

1340797C1

PISTON ASSY.

ASSY, Incl 8 - 11

1шт.

9

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

1шт.

10

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

11

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

12

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

13

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

14

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

15

87454908

BARREL

ASSY, Incl 5 (Qty2), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Tube, Incl in 15

1шт.

17

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

18

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

1542987C1

GLAND

1шт.

20

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

21

1542875C1

SEAL KIT,44.4mm Rod

1шт.

22

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

23

297281A1

GLAND

1шт.

24

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

Выбрано товаров: 24
