(88.100.82[03]) - DIA KIT, BUCKET 82 INCH 4 IN 1

Запчасти Case 580SN (88.100.82[03]) - DIA KIT, BUCKET 82 INCH 4 IN 1 (88) - ACCESSORIES

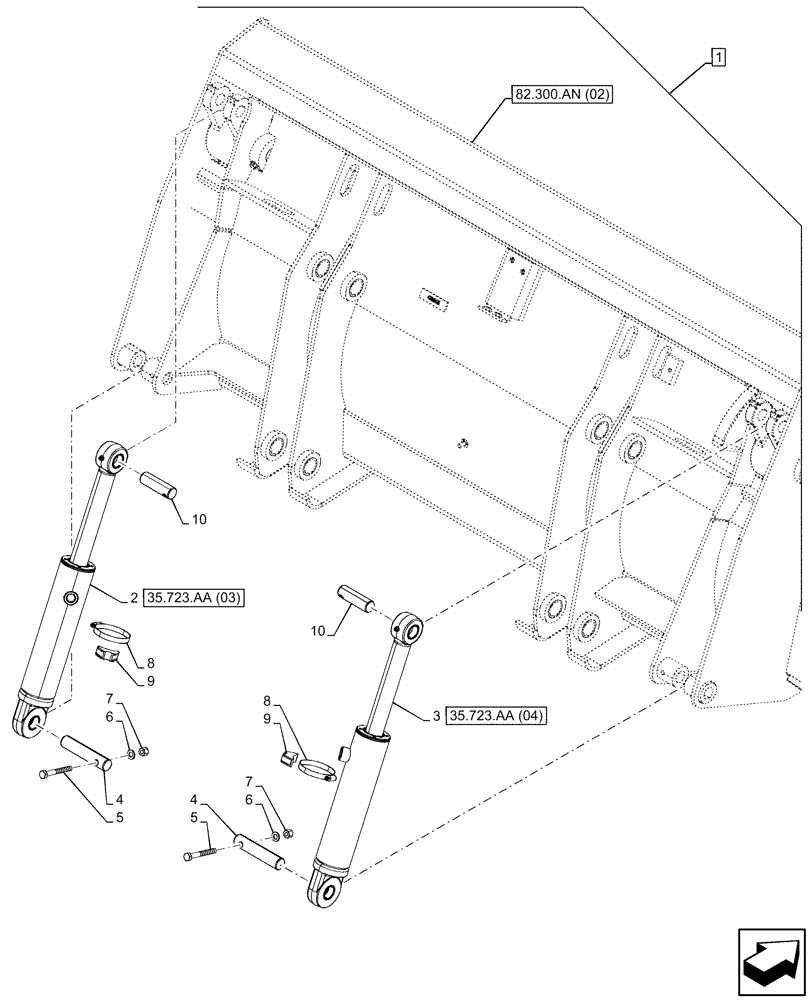

Схема запчастей Case 580SN - (88.100.82[03]) - DIA KIT, BUCKET 82 INCH 4 IN 1 (88) - ACCESSORIES
35.723.aa (04)
9
8
8
5
2
5
7
6
10
9
7
4
6
1
3
10
4
82.300.an (02)
35.723.aa (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84571019

BUCKET

Kit, Bucket 82 Inch 4 IN 1, Incl 2 - 11

1шт.

2

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

ASSY

1шт.

3

87455459

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

ASSY

1шт.

4

47803043

PIN,31.712mm OD x 162.4mm L

2шт.

5

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

9

47591143

CLAMP,3/4" Clamping tube

2шт.

10

D51392

PIN,31.72mm OD x 101.6mm L

2шт.
