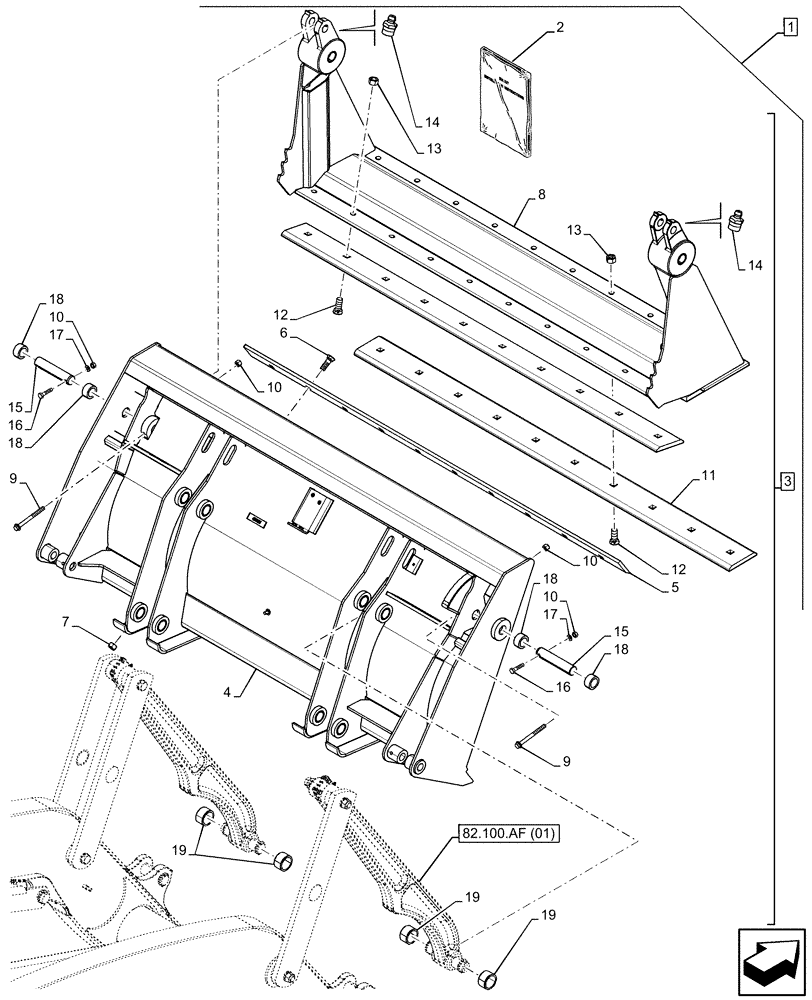

Запчасти Case 580SN (88.100.82[01]) - DIA KIT, BUCKET 82 INCH 4 IN 1 (88) - ACCESSORIES

1

84571019

BUCKET

Kit, Bucket 82 Inch 4 IN 1, Incl 2 - 19

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84479217

INSTRUCTION

1шт.

3

47802379

4 IN 1 BUCKET,82" L

ASSY, Incl 3 - 19

1шт.

4

NSS

NOT SOLD SEPARAT

Blade, Incl in 2

1шт.

5

121920A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2080mm L

1шт.

6

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

10шт.

7

29-1010

NUT,5/8"-11, G8

10шт.

8

175156A1

CLAMSHELL BUCKET

Front

1шт.

9

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

142300A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L

2шт.

12

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

13

29-1012

NUT,3/4"-10, G8

20шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

15

47803613

PIN,38mm OD x 190mm L

2шт.

16

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

19

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

4шт.
