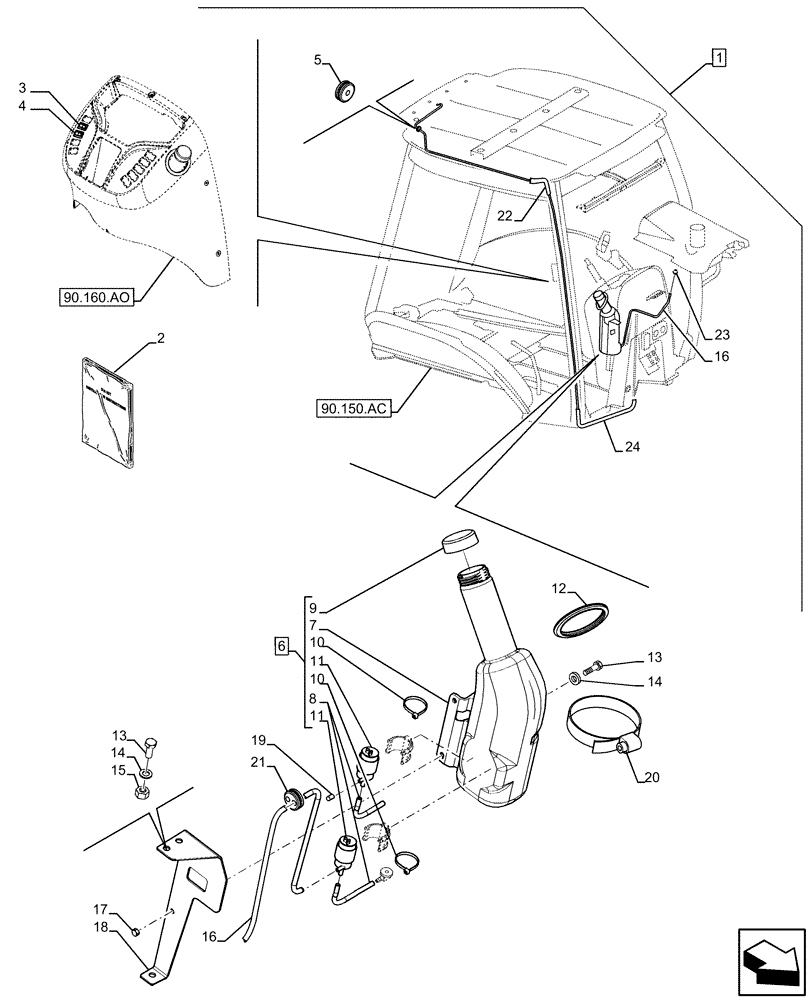

Запчасти Case 580SN (88.100.55[38]) - DIA KIT, CANOPY CONVERSION NARROW - DLX (88) - ACCESSORIES

1

47605397

CONSTRUCTION DIA

Canopy Conversion Narrow - DLX , Incl 2 - 24

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

47624950

INSTRUCTION

1шт.

3

84222277

SWITCH

Rocker, Windshield Wiper

1шт.

4

84222279

WINDSHIELD WASHER SW

Rocker

1шт.

5

87442441

GROMMET,27mm OD, 9.53mm ID, 11.1mm L

1шт.

6

87675209

RESERVOIR, WINDSHIEL

ASSY, Incl 7 - 11

1шт.

7

87675208

RESERVOIR, WINDSHIEL

1шт.

8

87700794

HOSE WASHER,4.76 mm ID x 135.00 mm

2шт.

9

87711985

FILLER CAP

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

11

86507198

PUMP,Windshield Washer

2шт.

12

87748047

SEAL,78mm ID x 106.6mm OD x 7mm Thk

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

15

833-40408

NUT,M8, U

3шт.

16

84560747

HOSE,4mm ID x 4100mm L

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

18

87491347

BRACKET

1шт.

19

87441758

CAP

1шт.

20

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

1шт.

21

87637384

GROMMET,35mm OD, 9mm ID, 12mm L

1шт.

22

84562347

COUPLING

1шт.

23

408965A1

GUARD

1шт.

24

87741447

HOSE PROTECTION,10.5mm ID x 1800mm L

1шт.
