(88.100.55[36]) - DIA KIT, HARNESS, WIRE, KIT, BRAKE ENABLE DE-CLUT

Запчасти Case 580SN (88.100.55[36]) - DIA KIT, HARNESS, WIRE, KIT, BRAKE ENABLE DE-CLUT (88) - ACCESSORIES

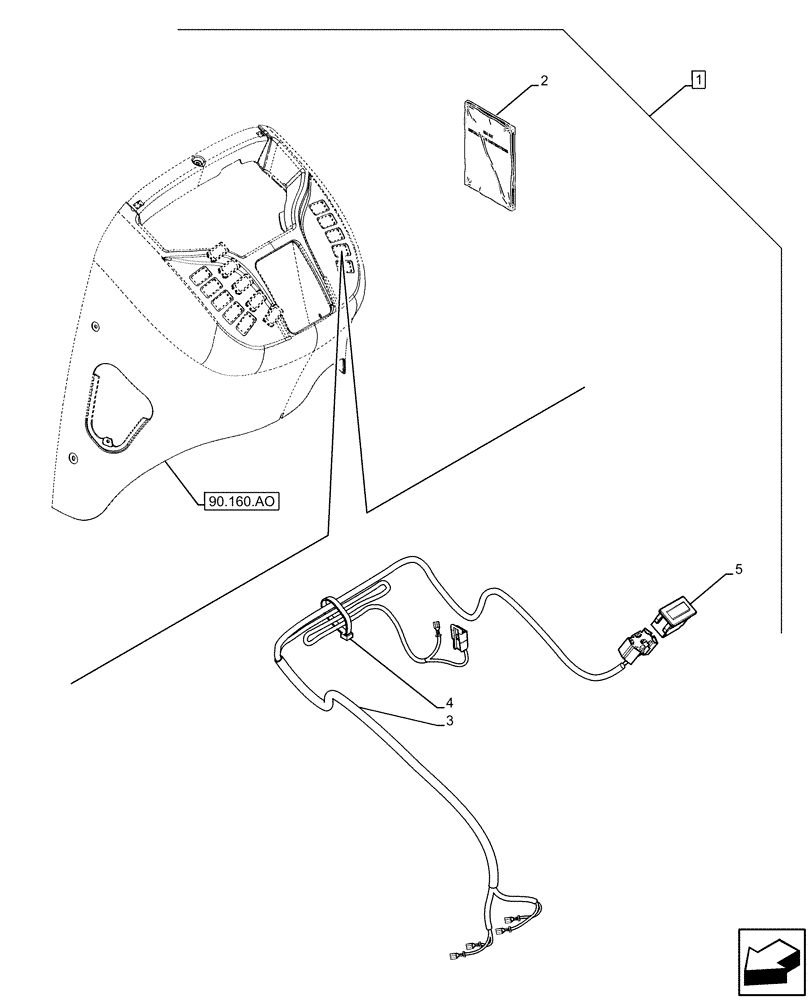

Схема запчастей Case 580SN - (88.100.55[36]) - DIA KIT, HARNESS, WIRE, KIT, BRAKE ENABLE DE-CLUT (88) - ACCESSORIES
90.160.ao
5
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342198

CONSTRUCTION DIA

HARNESS, WIRE, KIT, BRAKE ENABLE DE CLUTCH, Incl 2 - 5

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84369365

INSTRUCTION

1шт.

3

84290781

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

5

370132A1

SWITCH

1шт.

Выбрано товаров: 6
