Запчасти Case 580SN (88.100.55[35]) - DIA KIT, BLOCK HEATER (88) - ACCESSORIES

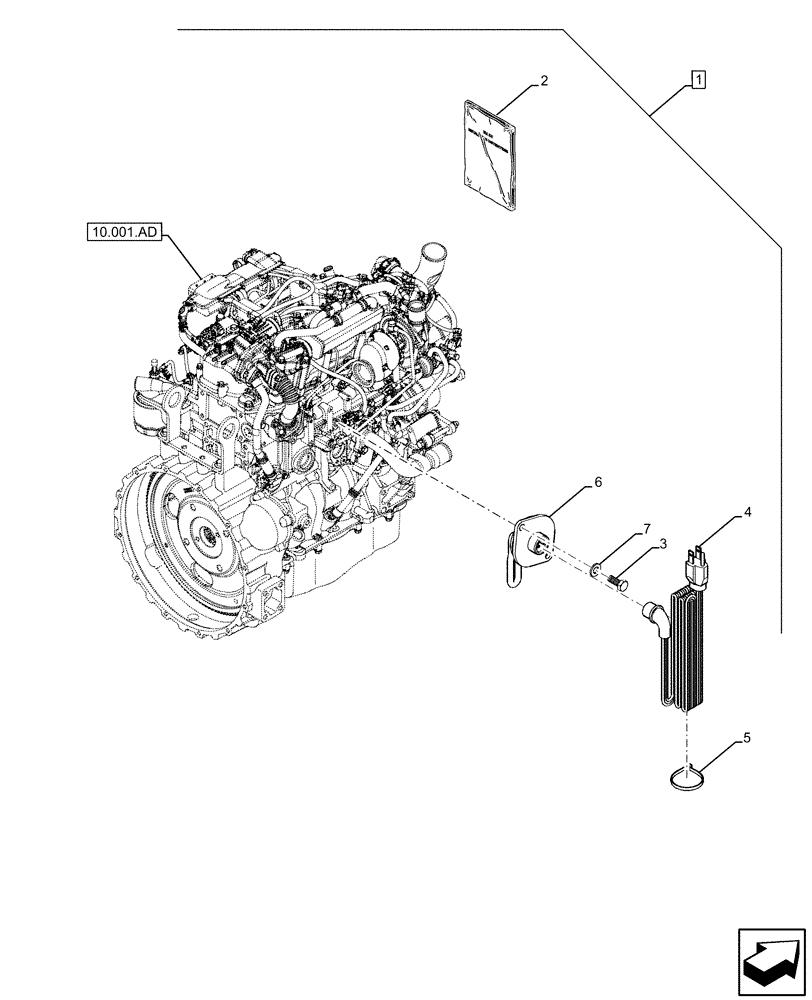

Схема запчастей Case 580SN - (88.100.55[35]) - DIA KIT, BLOCK HEATER (88) - ACCESSORIES
10.001.ad
4
7
5
1
6
2
3

Артикул

Название

Примечание

Количество

1

87447135

SERVICE KIT

Kit, Block Heater, Incl 2 - 7

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84376309

INSTRUCTION

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

4

196466A1

ELECTRIC CABLE

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

6

8602005

HEATER,750W, 120V

750W, 120V

1шт.

7

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

Выбрано товаров: 8
