Запчасти Case 580SN (88.100.55[32]) - DIA KIT, GRID HEATER INSTALLATION FOR TIER III HPCR ENGINE UNITS (88) - ACCESSORIES

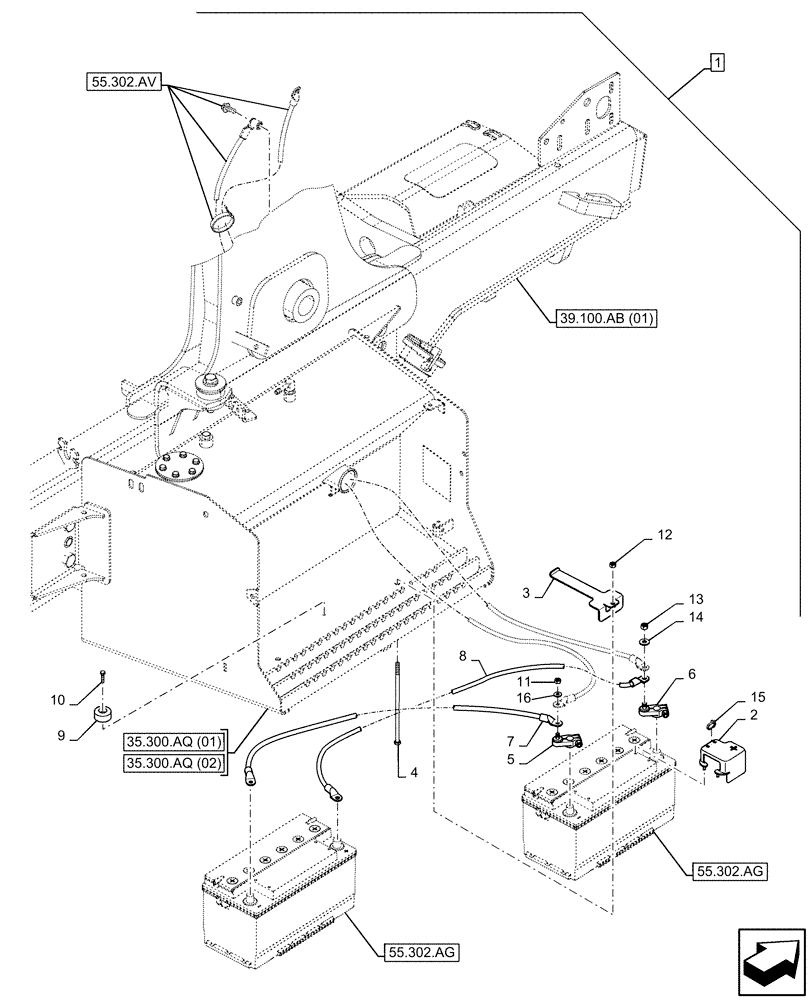

Схема запчастей Case 580SN - (88.100.55[32]) - DIA KIT, GRID HEATER INSTALLATION FOR TIER III HPCR ENGINE UNITS (88) - ACCESSORIES
55.302.av
1
15
6
14
5
9
3
2
7
4
8
10
11
12
13
16
35.300.aq (02)
39.100.ab (01)
35.300.aq (01)
55.302.ag
55.302.ag

Артикул

Название

Примечание

Количество

1

87721315

SERVICE KIT

Grid Heater Installation for TIER 3 HPCR Engine Units, Incl 2 - 16

1шт.

2

87664021

COVER

1шт.

3

87653377

BRACKET

1шт.

4

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

1шт.

5

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

1шт.

6

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

1шт.

7

87610682

NEG BATTERY CABLE,485mm L

1шт.

8

87610681

POS BATTERY CABLE

1шт.

9

87671746

BUMPER,Neoprene

1шт.

10

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

11

425-105

NUT,5/16"-18, G5

1шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

15

87486703

CABLE TIE,312mm L

1шт.

16

495-11034

WASHER,5/16", SAE

1шт.

Выбрано товаров: 16
