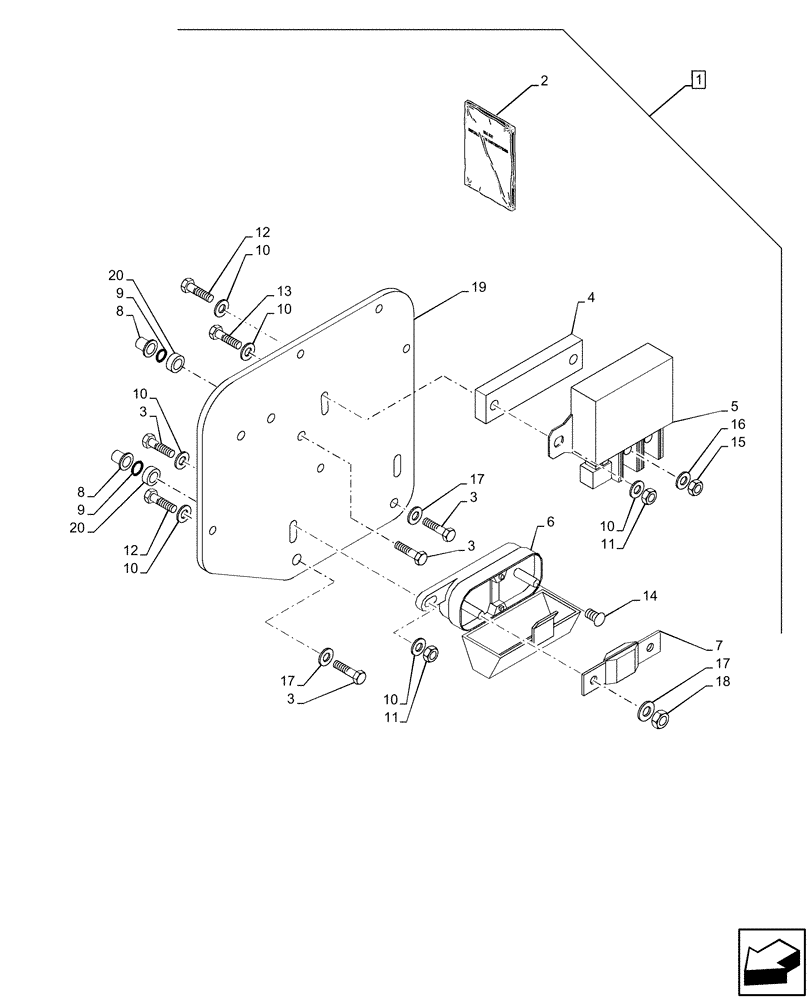

Запчасти Case 580SN (88.100.55[30]) - DIA KIT, GRID HEATER INSTALLATION FOR TIER III HPCR ENGINE UNITS (88) - ACCESSORIES

1

87732181

SERVICE KIT

Grid Heater Installation for TIER3 HPCR Engine Units, Incl 2 - 20

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84376311

INSTRUCTION

1шт.

3

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

4

87414237

PLATE,25mm W x 102mm L x 10mm Thk

1шт.

5

86619908

RELAY,12V, 150A

1шт.

6

440038A1

JUNCTION BLOCK

1шт.

7

87410602

FUSE,300A, Blade

300 Amp

1шт.

8

87417383

THREADED INSERT,M8 x 1.25

3шт.

9

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

11

832-10406

NUT,M6 x 1, Cl 8

5шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

13

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

14

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

15

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

17

892-11008

LOCK WASHER,8mm ID

7шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

87397601

BRACKET, SUPPORTING,2mm Thk

1шт.

20

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.
