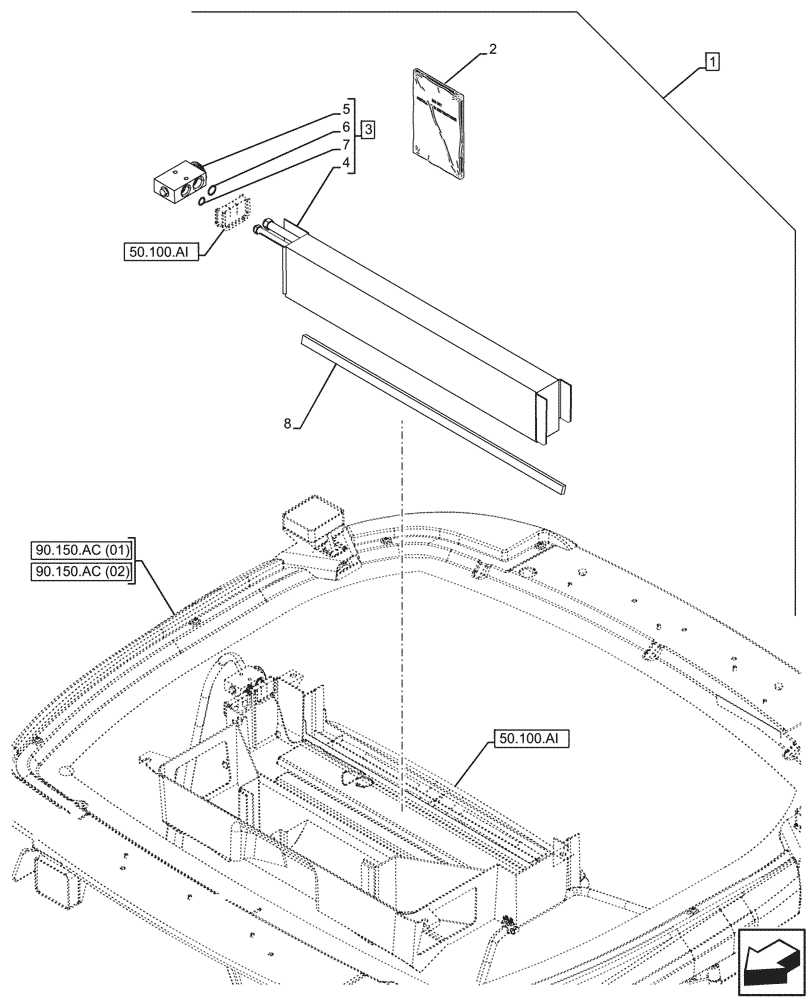

Запчасти Case 580SN (88.100.50[01]) - DIA KIT, A/C HPCR (88) - ACCESSORIES

1

84412148

SERVICE KIT

Kit, DIA A/C HPCR, Incl 2 - 8

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84412153

INSTRUCTION

1шт.

3

363832A5

EVAPORATOR

ASSY, Incl 3 - 5

1шт.

4

360263A4

EVAPORATOR

1шт.

5

386535A1

VALVE

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

8

83822C1

TAPE

3шт.
