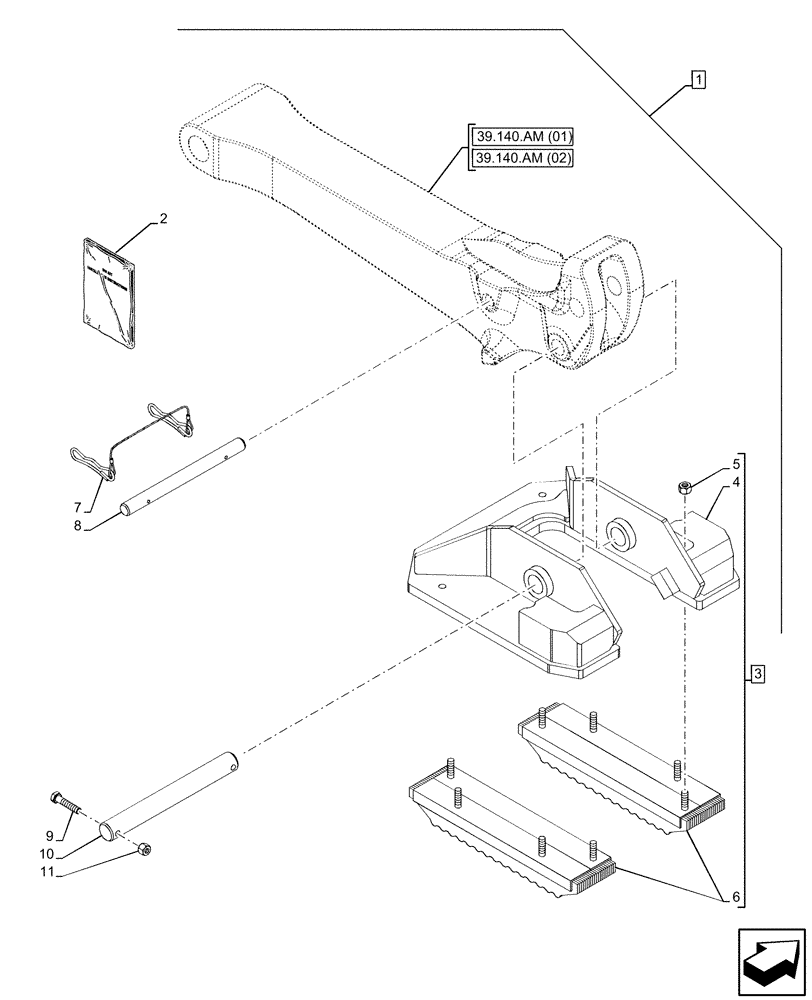

Запчасти Case 580SN (88.100.39[04]) - DIA KIT, FLIP STABILIZER (88) - ACCESSORIES

1

84276999

KIT

Kit, 580SN WT AND 590SN FLIP STABILIZER, Incl 2 - 11

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84399663

INSTRUCTION

1шт.

3

84290975

PAD

Stabilizer Flip, ASSY, Incl 4 - 6

1шт.

4

84290984

PAD

1шт.

5

832-41312

NUT,M12 x 1.75, Cl 10

8шт.

6

47432044

PAD

2шт.

7

446454A1

PIN,4.5mm OD x 305mm L

1шт.

8

84290956

PIVOT PIN,25.4mm OD x 300mm L

1шт.

9

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

10

D149033

PIN,38.1mm OD x 323.5mm L

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
