(88.100.39[02]) - DIA KIT, HEAVY COUNTERWEIGHT

Запчасти Case 580SN (88.100.39[02]) - DIA KIT, HEAVY COUNTERWEIGHT (88) - ACCESSORIES

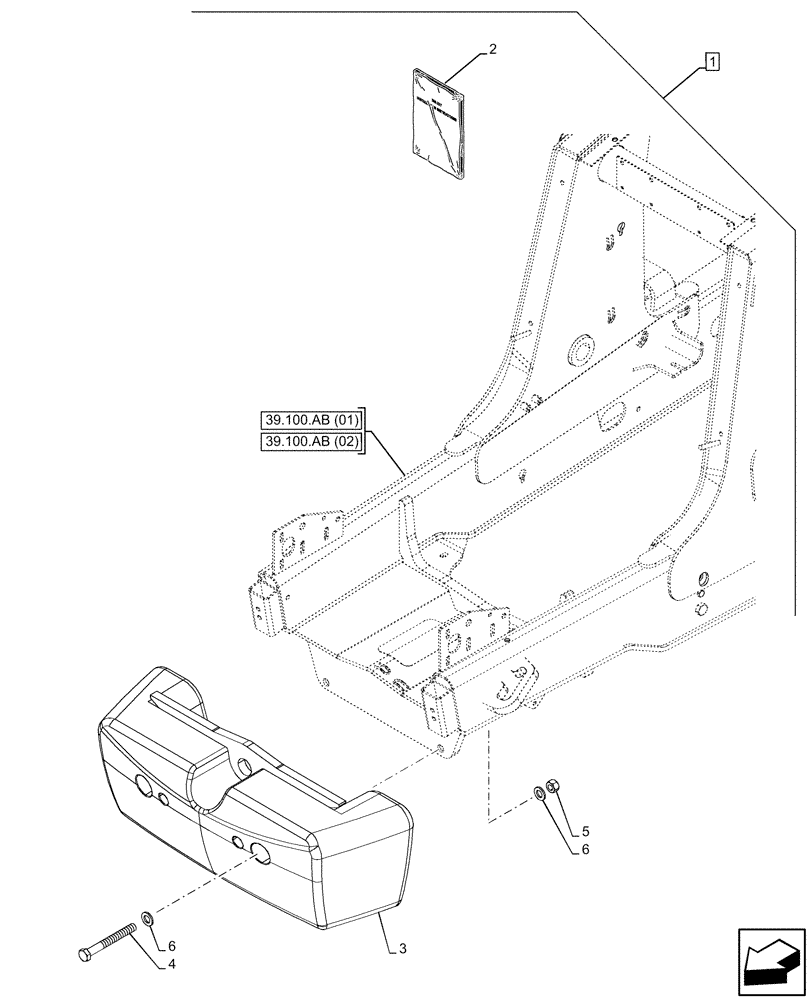

Схема запчастей Case 580SN - (88.100.39[02]) - DIA KIT, HEAVY COUNTERWEIGHT (88) - ACCESSORIES
39.100.ab (02)
2
4
6
5
1
3
6
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488979

CONSTRUCTION DIA

Heavy Counterweight Incl 2 - 6

1шт.

2

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

47488980

INSTRUCTION

1шт.

3

84254687

COUNTERWEIGHT,310 Kg / 700 Lb

Front, 1100 Lb

1шт.

4

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

5

829-1420

NUT,M20, Cl 10

2шт.

6

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

Выбрано товаров: 7
