(88.100.39[01]) - DIA KIT, STD COUNTERWEIGHT

Запчасти Case 580SN (88.100.39[01]) - DIA KIT, STD COUNTERWEIGHT (88) - ACCESSORIES

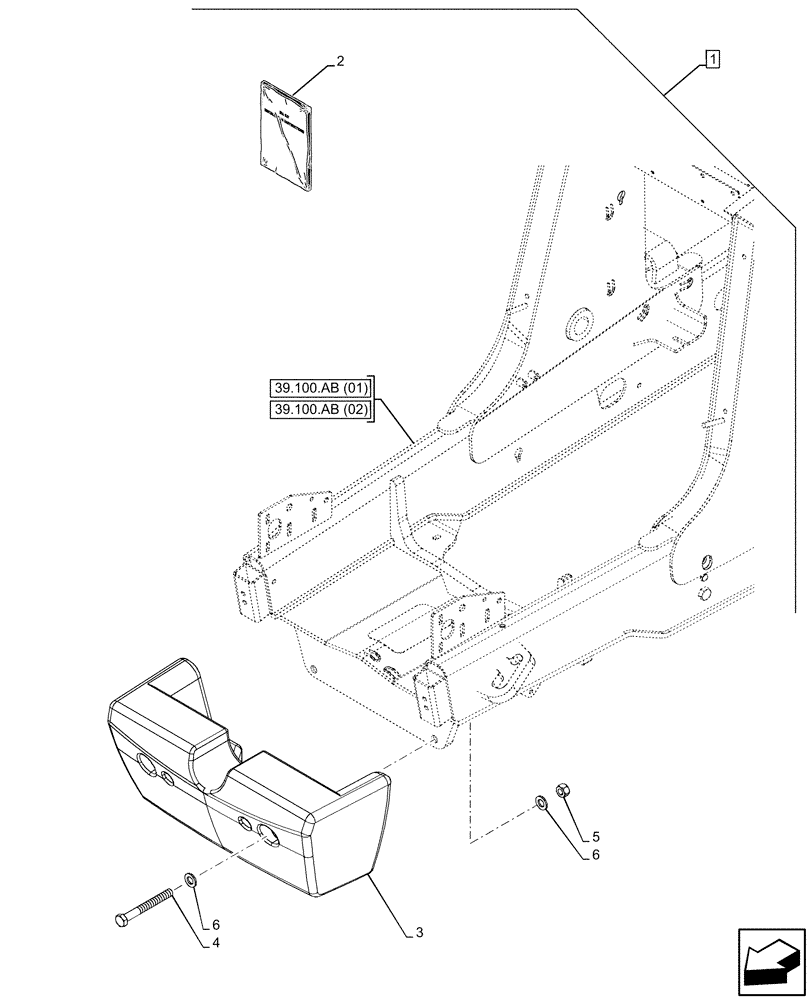

Схема запчастей Case 580SN - (88.100.39[01]) - DIA KIT, STD COUNTERWEIGHT (88) - ACCESSORIES
39.100.ab (01)
2
4
1
6
6
3
5
39.100.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84275784

CONSTRUCTION DIA

Kit, STD Counterweight, Incl 2 - 6

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84275787

INSTRUCTION

1шт.

3

84254687

COUNTERWEIGHT,310 Kg / 700 Lb

Front, 700 Lb

1шт.

4

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

5

829-1420

NUT,M20, Cl 10

2шт.

6

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

Выбрано товаров: 7
