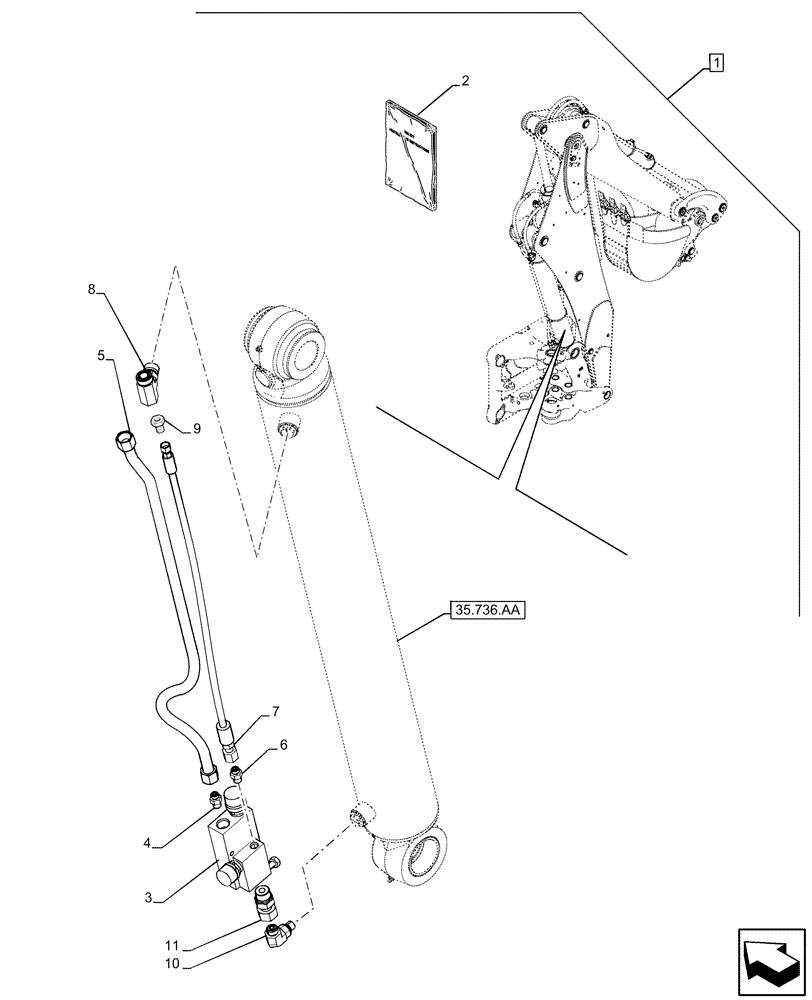

Запчасти Case 580SN (88.100.35[133]) - DIA KIT, BOOM LOCK VALVE (88) - ACCESSORIES

1

84588439

CONSTRUCTION DIA

Boom Lock Valve, Incl 2 - 11

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84588448

INSTRUCTION

1шт.

3

84574590

VALVE

1шт.

4

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

5

84522698

HYD TUBE

1шт.

6

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

7

84522700

HYDRAULIC HOSE,6.3mm ID x 870mm L

1шт.

8

84411964

BRANCH TEE

1шт.

9

84522377

REDUCER

1шт.

10

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

11

85805124

HYD CONNECTOR,1-14 ORFS x 7/8-14 ORB

1шт.
