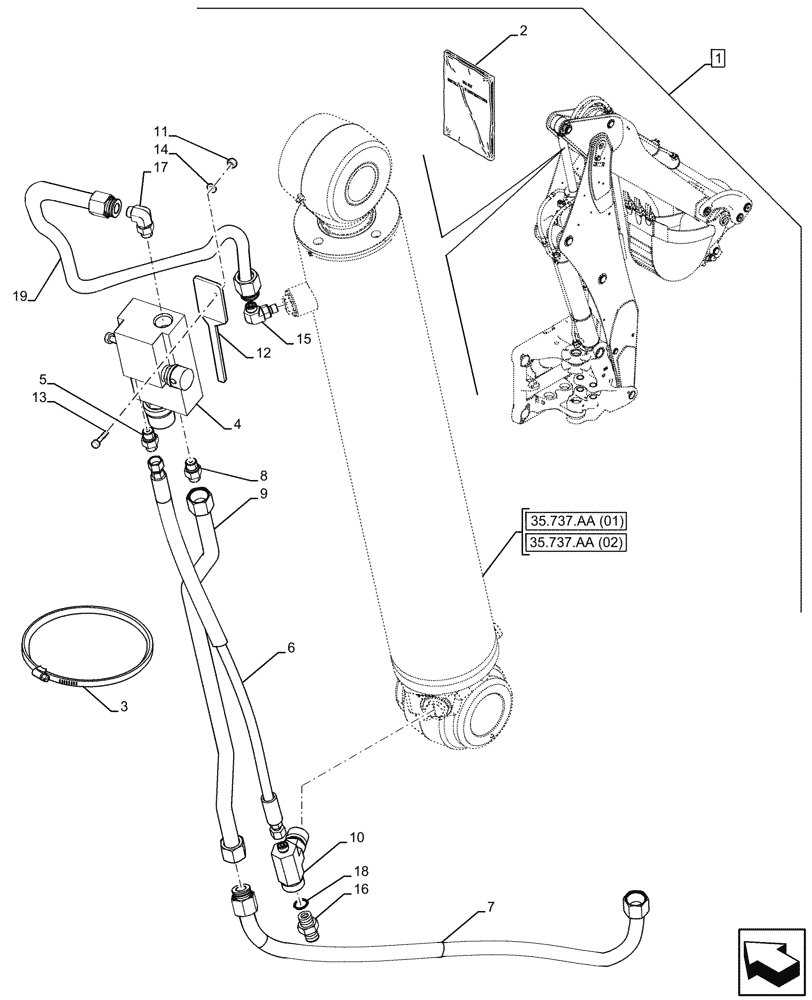

Запчасти Case 580SN (88.100.35[130]) - DIA KIT, DIPPER LOCK VALVE (88) - ACCESSORIES

1

84588434

CONSTRUCTION DIA

Dipper Lock Valve, Incl 2 - 19

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84588445

INSTRUCTION

1шт.

3

84536912

HYD TUBE

1шт.

4

87353314

SAFETY VALVE

1шт.

5

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

6

84574638

HYDRAULIC HOSE,6.3mm ID x 870mm L

1шт.

7

84574589

HYDRAULIC HOSE,16mm ID x 2050mm L

1шт.

8

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

9

84536911

HYD TUBE

1шт.

10

84257031

FITTING,9/16-18 ORFS x 3/16-12 ORFS x 1/16-12 ORB

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.

12

84558827

BRACKET

1шт.

13

9515541

SCREW,Hex, M8 x 55mm, Cl 8.8

1шт.

14

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

15

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

1шт.

16

84989617

HYD CONNECTOR,1"-14 ORFS x 1-3/16"-12 Fem ORFS

1шт.

17

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

214-3196

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

1шт.
