(88.100.35[114]) - DIA KIT, DUAL AUX PILOT EHOE, SERVICE

Запчасти Case 580SN (88.100.35[114]) - DIA KIT, DUAL AUX PILOT EHOE, SERVICE (88) - ACCESSORIES

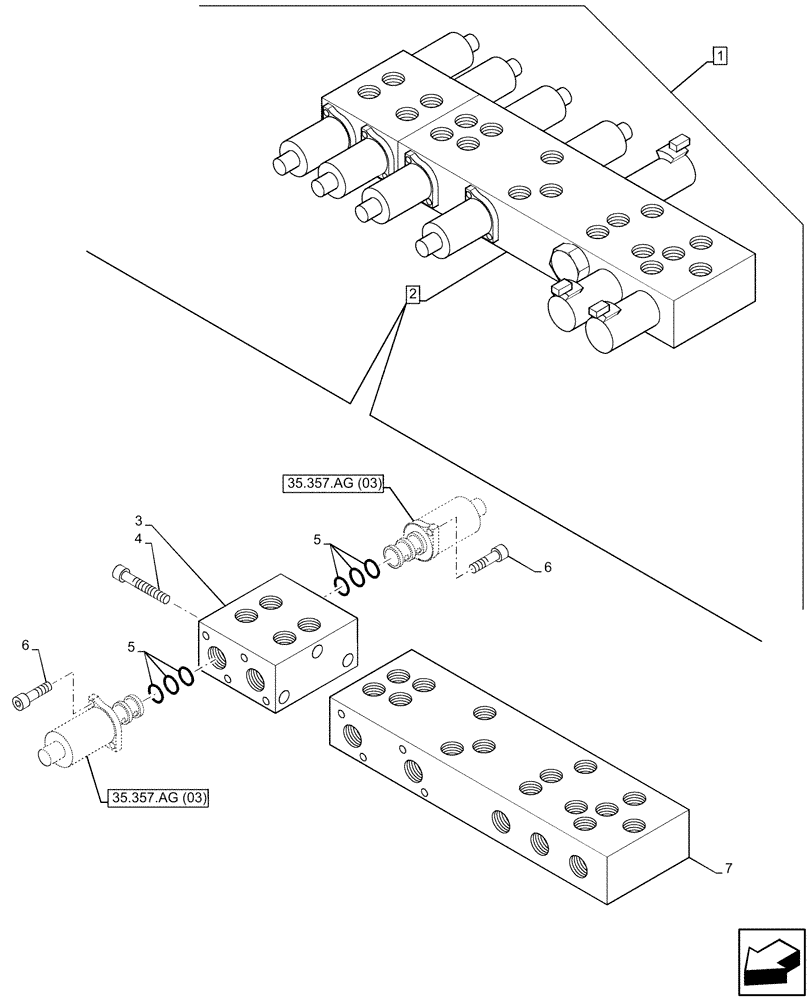

Схема запчастей Case 580SN - (88.100.35[114]) - DIA KIT, DUAL AUX PILOT EHOE, SERVICE (88) - ACCESSORIES
35.357.ag (03)
2
5
7
4
6
6
5
1
3
35.357.ag (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47670543

SERVICE KIT

Dual Auxiliary, Pilot Control, Extendable Dipper, Service, Incl 2 - 7

1шт.

2

47765047

PILOT VALVE

ASSY, 4 Section with Pattern Select, Incl 3 - 7

1шт.

3

85828048

MANIFOLD VALVE

2 Function Block

1шт.

4

85828061

SCREW,M5 x 80mm

3шт.

5

85828000

SEAL KIT

2шт.

6

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

4шт.

7

NSS

NOT SOLD SEPARAT

2 Function Block, Incl in 2

1шт.
