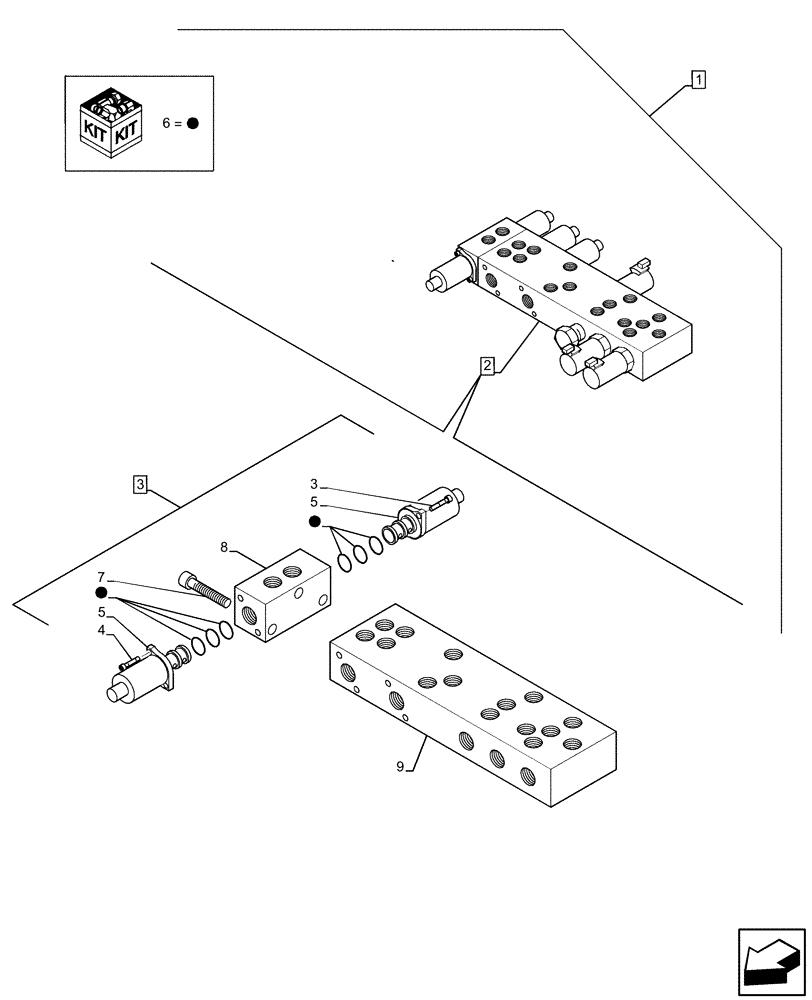

Запчасти Case 580SN (88.100.35[110]) - DIA KIT, DUAL AUX PILOT STANDARD (88) - ACCESSORIES

1

47670289

SERVICE KIT

Dual Auxiliary, Pilot Control, Standard Dipper, Incl 2 - 9

1шт.

2

85827471

HYDRAULIC VALVE

ASSY, Incl 3 - 9

1шт.

3

85828004

BODY

ASSY, Incl 4 - 8

1шт.

4

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

4шт.

5

85827993

SOLENOID VALVE

ASSY, Incl 6

2шт.

6

85828000

SEAL KIT

1шт.

7

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

3шт.

8

NSS

NOT SOLD SEPARAT

Block, Incl in 2

1шт.

9

85828013

BLOCK

1шт.
