Запчасти Case 580SN (88.100.35[106]) - DIA KIT BI AUX PR VALVE SECTION PILOT CONTROL (88) - ACCESSORIES

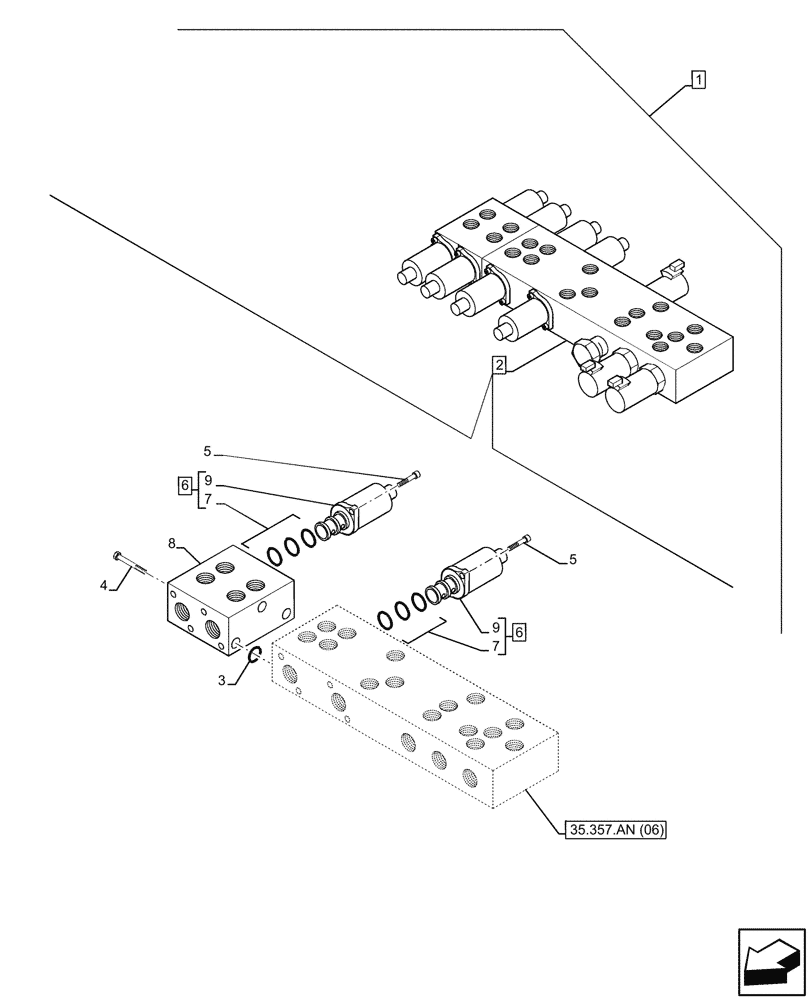

Схема запчастей Case 580SN - (88.100.35[106]) - DIA KIT BI AUX PR VALVE SECTION PILOT CONTROL (88) - ACCESSORIES
35.357.an (06)
7
7
8
2
1
6
5
3
4
5
9
9
6

Артикул

Название

Примечание

Количество

1

87366503

HYDRAULIC VALVE

Bi Auxiliary Pressure Valve Section, Pilot Control, Incl 2 - 8

1шт.

2

87434621

CONTROL VALVE

ASSY, Incl 3 - 8

1шт.

3

85827999

SEAL KIT

1шт.

4

85828061

SCREW,M5 x 80mm

1шт.

5

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

3шт.

6

85827993

SOLENOID VALVE

ASSY, Incl 7, 9

16шт.

7

85828000

SEAL KIT

8шт.

8

85828048

MANIFOLD VALVE

2 - Function ADD - ON

8шт.

9

NSS

NOT SOLD SEPARAT

Solenoid Valve, Incl in 6

2шт.

Выбрано товаров: 9
