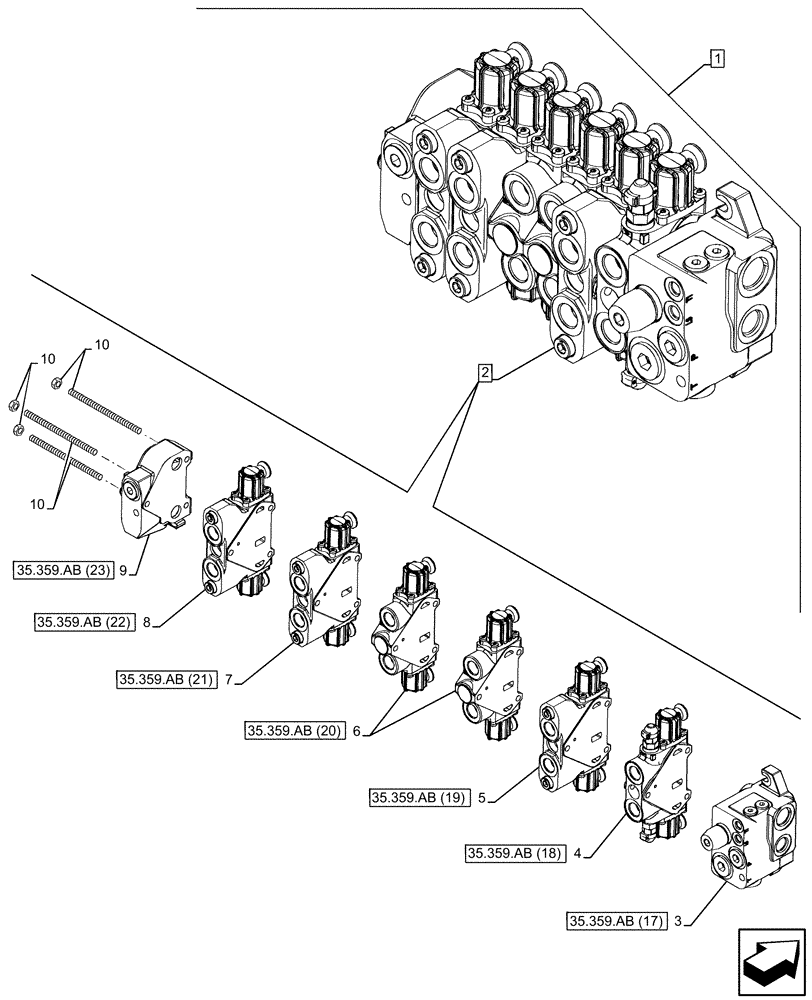

Запчасти Case 580SN (88.100.35[097]) - DIA KIT, DIPPER OSCILLATION (88) - ACCESSORIES
![Схема запчастей Case 580SN - (88.100.35[097]) - DIA KIT, DIPPER OSCILLATION (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5382598.png)
35.359.ab (22)
10
10
1
9
5
2
6
3
10
4
8
7
35.359.ab (17)
35.359.ab (20)
35.359.ab (21)
35.359.ab (18)
35.359.ab (19)
35.359.ab (23)
№
Артикул
Название
Примечание
Количество
1
47593980
CONSTRUCTION DIA
Dipper Oscillation, Incl 2 - 10
1шт.
2
84551838
CONTROL VALVE
Backhoe 6 Spool Pilot Control, ASSY, Incl 3 - 10
1шт.
3
84278712
HYD VALVE SECTION
Inlet, ASSY
1шт.
4
84586031
HYD VALVE SECTION
Swing,ASSY
1шт.
5
84278714
HYD VALVE SECTION
Boom, ASSY
1шт.
5
84278714R
REMAN-HYD VALVE
Reman Valve - Boom
1шт.
5
84278714C
CORE-VALVE HYD
Core Return Number
1шт.
6
84157939
HYD VALVE SECTION
Stabilizer, ASSY
2шт.
7
84278710
HYD VALVE SECTION
Dipper, ASSY
1шт.
8
84278702
HYD VALVE SECTION
Bucket, ASSY
1шт.
9
85811915
HYD VALVE SECTION
Outlet, ASSY
1шт.
10
85811958
KIT
Backhoe 6 Spool Valve Tie Rods
1шт.
Выбрано товаров: 12
