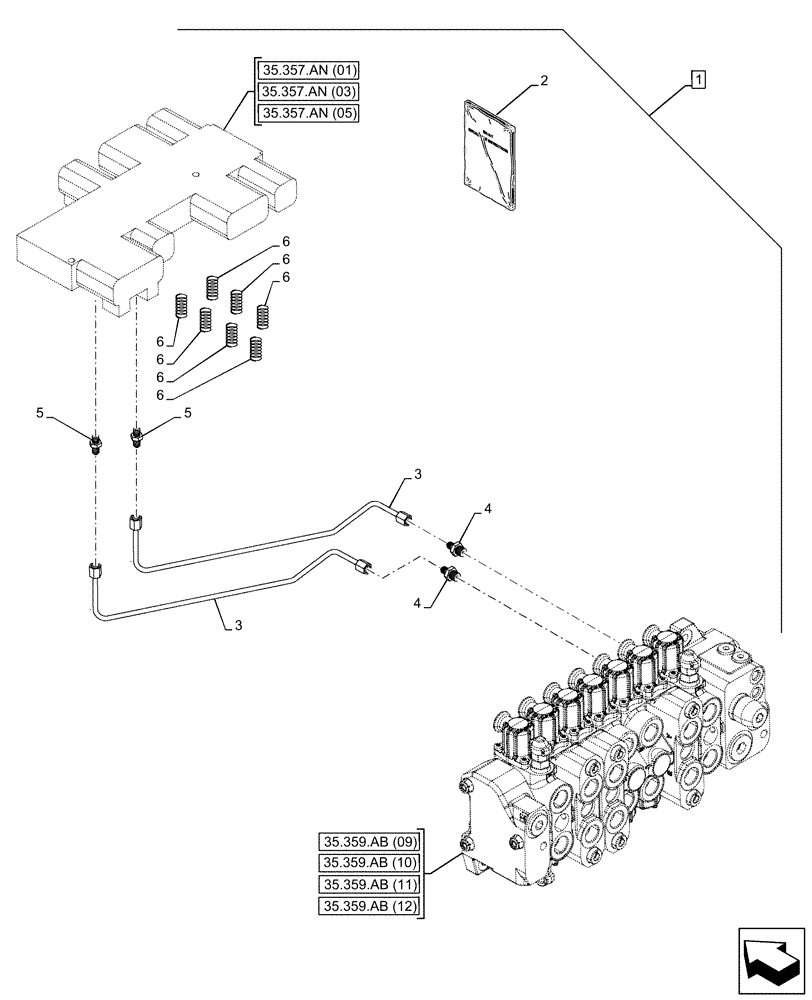

Запчасти Case 580SN (88.100.35[087]) - DIA KIT, DIPPER OSCILLATION (88) - ACCESSORIES
![Схема запчастей Case 580SN - (88.100.35[087]) - DIA KIT, DIPPER OSCILLATION (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5382301.png)
35.357.an (01)
3
4
6
4
5
1
6
6
5
6
2
6
3
6
6
35.359.ab (09)
35.359.ab (11)
35.359.ab (12)
35.359.ab (10)
35.357.an (05)
35.357.an (03)
№
Артикул
Название
Примечание
Количество
1
47593980
CONSTRUCTION DIA
Dipper Oscillation, Incl 2 - 6
1шт.
Refer to Installation Instruction P/N for Correct Assembly Procedure
1шт.
2
47601541
INSTRUCTION
1шт.
3
87594364
HYDRAULIC HOSE,6mm ID x 550mm L
1шт.
4
87594363
DAMPING VALVE
1шт.
5
139398
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC
2шт.
6
47593938
COMPRESSION SPRING,16.7mm OD x 50.8mm L
2шт.
