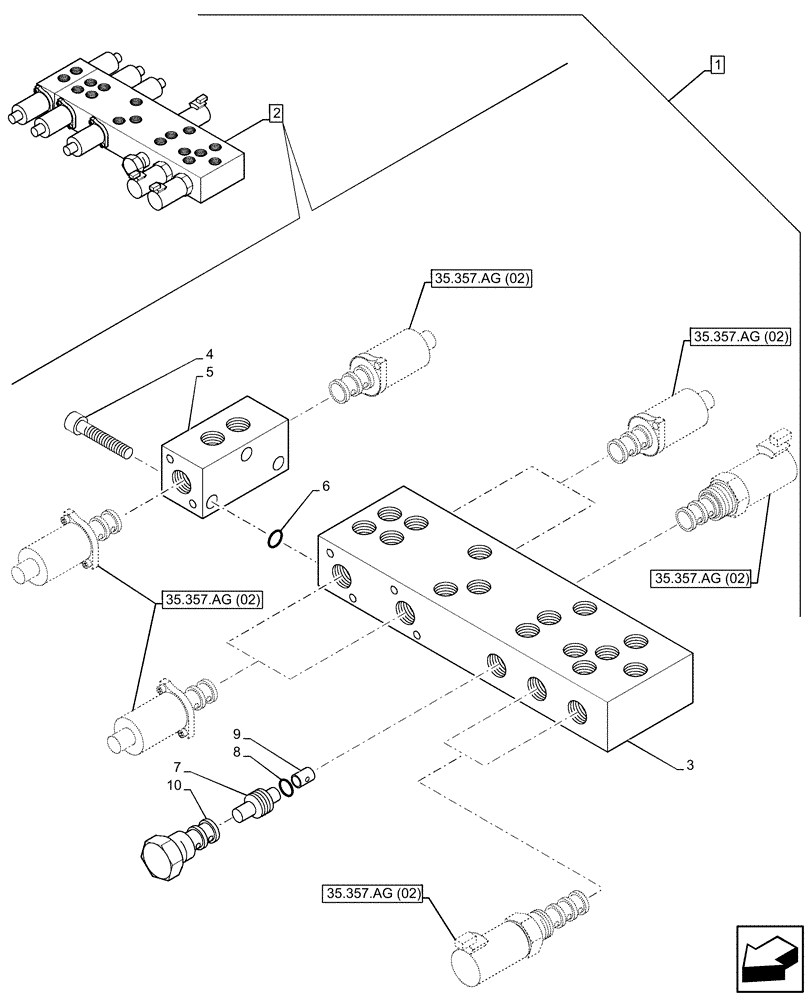

Запчасти Case 580SN (88.100.35[065]) - DIA KIT, NO AUX TO COMBO, STD, PC (88) - ACCESSORIES

1

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 2 -12

1шт.

2

47765051

PILOT VALVE

ASSY, Proportional Pilot Pressure, Incl 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

2 Function Block Manifold, Incl in 2

1шт.

4

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

3шт.

5

85828004

BODY

Body 1 Function

1шт.

6

85827999

SEAL KIT

1шт.

7

85827992

CHECK VALVE

1шт.

8

85828003

O-RING,1mm Thk x 9mm ID

1шт.

9

85828005

ORIFICE

1шт.

10

47761898

VALVE, PRESSURE CONT

Fixed Reducing

1шт.
