Запчасти Case 580SN (88.100.35[042]) - DIA KIT, UNI-DIR, MC, EHOE (88) - ACCESSORIES

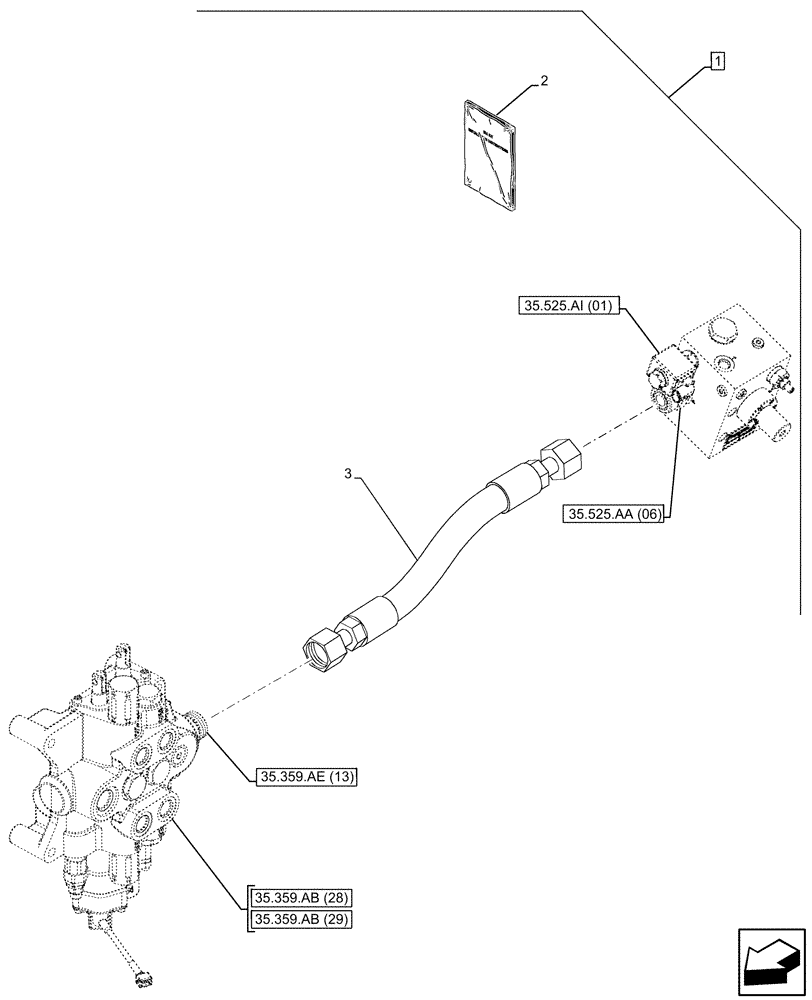

Схема запчастей Case 580SN - (88.100.35[042]) - DIA KIT, UNI-DIR, MC, EHOE (88) - ACCESSORIES
35.359.ab (29)
2
1
3
35.359.ae (13)
35.525.aa (06)
35.525.ai (01)
35.359.ab (28)

Артикул

Название

Примечание

Количество

1

84546989

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 2, 3

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84546987

INSTRUCTION

1шт.

3

84283269

HOSE ASSY.,19mm ID x 461mm L

Loader Valve to Hammer Valve, 461mm

1шт.

Выбрано товаров: 4
