(88.100.35[041]) - DIA KIT, UNI-DIR MC STD

Запчасти Case 580SN (88.100.35[041]) - DIA KIT, UNI-DIR MC STD (88) - ACCESSORIES

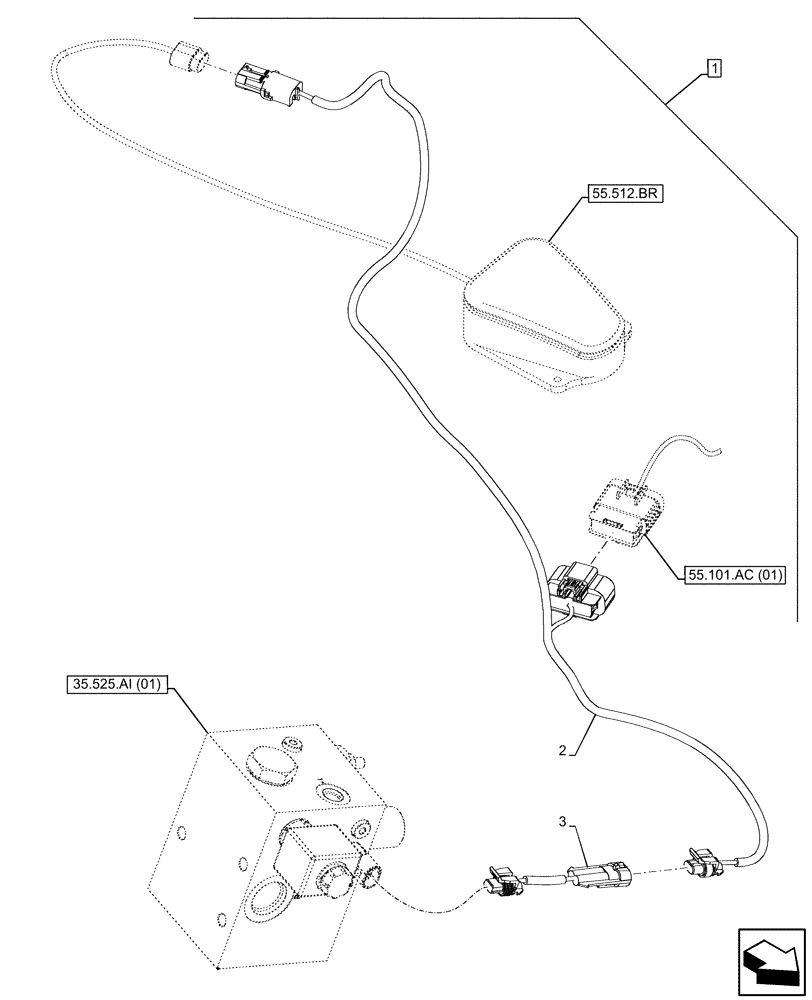

Схема запчастей Case 580SN - (88.100.35[041]) - DIA KIT, UNI-DIR MC STD (88) - ACCESSORIES
55.512.br
1
3
2
55.101.ac (01)
35.525.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546986

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 2, 3

1шт.

2

84292390

WIRE HARNESS

Combo Auxiliary, Mechanical Control

1шт.

3

84386573

WIRE HARNESS

Jumper

1шт.

Выбрано товаров: 3
