(88.100.35[032]) - DIA KIT, NO AUX TO COMBO AUX, MC, EHOE

Запчасти Case 580SN (88.100.35[032]) - DIA KIT, NO AUX TO COMBO AUX, MC, EHOE (88) - ACCESSORIES

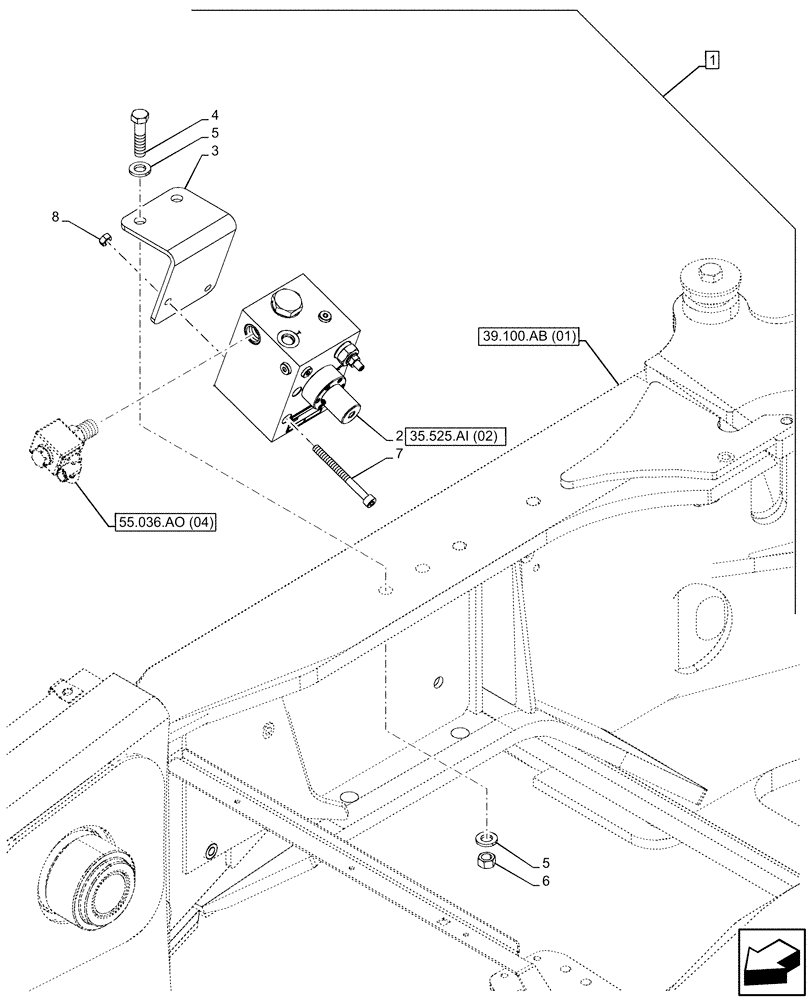

Схема запчастей Case 580SN - (88.100.35[032]) - DIA KIT, NO AUX TO COMBO AUX, MC, EHOE (88) - ACCESSORIES
39.100.ab (01)
4
1
2
8
7
5
6
5
3
35.525.ai (02)
55.036.ao (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546982

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 2 - 8

1шт.

2

84247109

VALVE

1шт.

3

84257782

BRACKET

1шт.

4

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

6

337475

NUT,M12, Cl 10

2шт.

7

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.
