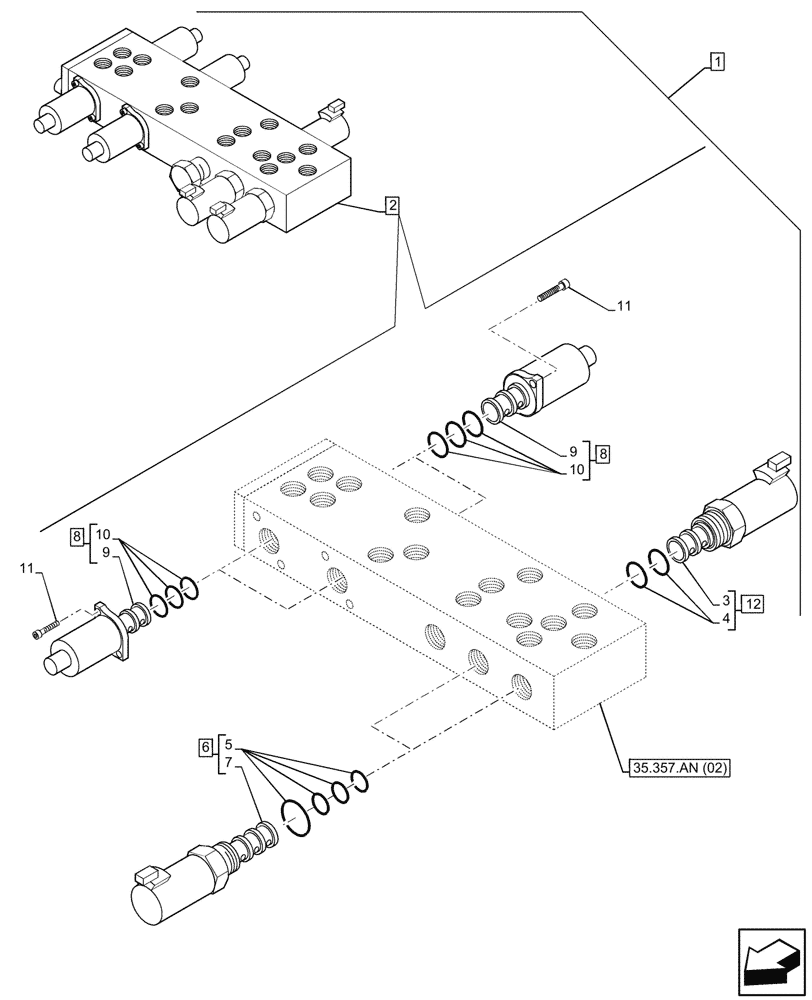

Запчасти Case 580SN (88.100.35[007]) - DIA KIT, UNI-AUX TO COMBO, STD, PC (88) - ACCESSORIES

1

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 2 -12

1шт.

2

47765052

HYDRAULIC VALVE

ASSY, Proportional Pilot Pressure

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

4

85827998

SEAL KIT

1шт.

5

85828002

SEAL KIT

1шт.

6

85827996

SOLENOID VALVE,2 Section

ASSY, Incl 5,7

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 6

1шт.

8

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 9 (Qty 1), 10 (Qty 1)

4шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 8

4шт.

10

85828000

SEAL KIT

4шт.

11

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

8шт.

12

85827994

SOLENOID VALVE

ASSY, Incl 3, 4

1шт.
