(10.206.AF[02]) - FUEL FILTER/WATER SEPARATOR, COMPONENTS

Запчасти Case 580SN (10.206.AF[02]) - FUEL FILTER/WATER SEPARATOR, COMPONENTS (10) - ENGINE

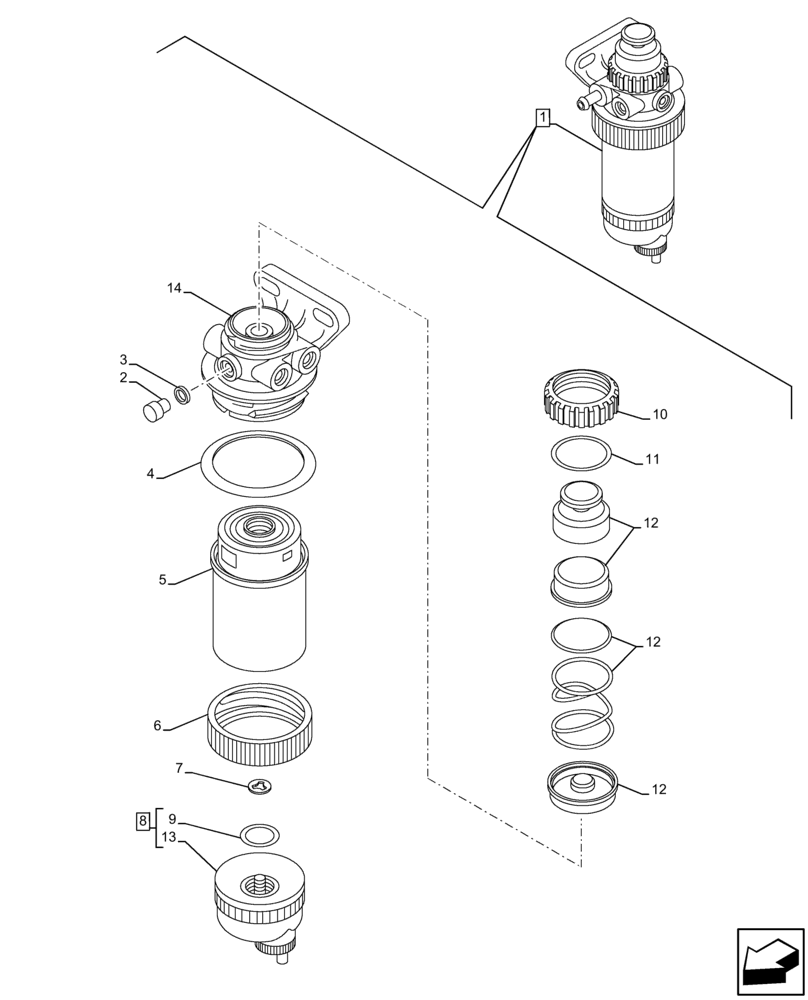

Схема запчастей Case 580SN - (10.206.AF[02]) - FUEL FILTER/WATER SEPARATOR, COMPONENTS (10) - ENGINE
12
13
12
3
9
6
5
8
14
2
12
4
11
10
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87494328

FILTER

Fuel Water Separator, ASSY, Incl 2 - 14

1шт.

2

87840178

PLUG

Air Vent

1шт.

3

87840177

O-RING

1шт.

4

87840171

SEAL

Dust

1шт.

5

87803445

FUEL FILTER,79.2mm OD x 4.3" L, 30 Microns

1шт.

6

87840170

LOCKING RING

1шт.

7

87612469

SEALING WASHER

1шт.

8

87801005

KIT

Fuel Filter, Water Bowl, ASSY, Incl 9, 13

1шт.

9

87612471

SEAL

Water Bowl

1шт.

10

87840173

RETAINER

Cap Ring

1шт.

11

87840174

O-RING

Top Cap

1шт.

12

87612472

KIT

Hand Primer, Reverse Flow

1шт.

13

NSS

NOT SOLD SEPARAT

Water Bowl, Incl in 8

1шт.

14

NSS

NOT SOLD SEPARAT

Fuel Filter, Header, Incl in 1

1шт.
