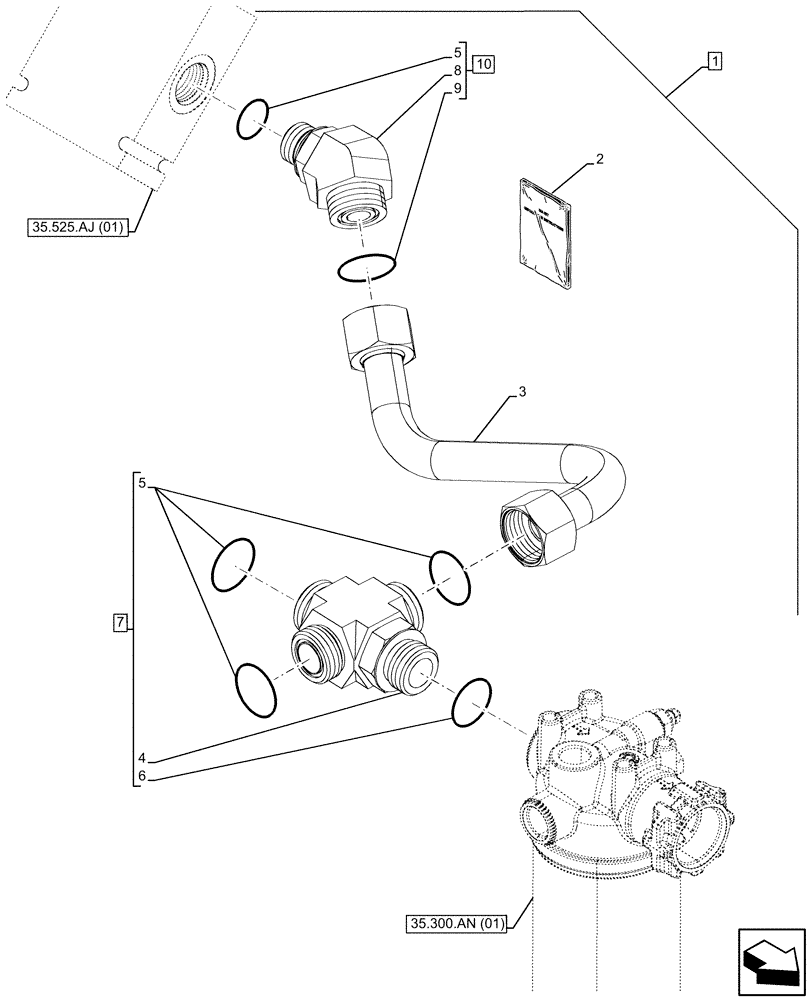

Запчасти Case 580SN (88.100.35[006]) - DIA KIT, UNI-AUX TO COMBO, STD, PC (88) - ACCESSORIES

1

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Pilot Control, Standard Dipper, Incl 2 - 10

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

47661913

INSTRUCTION

1шт.

3

84524281

HYD TUBE

Fuel Auxiliary Check Valve to Filter

1шт.

4

NSS

NOT SOLD SEPARAT

Cross, Incl in 7

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

ASSY, Incl 4 - 6

1шт.

8

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 10

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

87302733

HYD CONNECTOR

ASSY, Incl 5,8,9

1шт.
