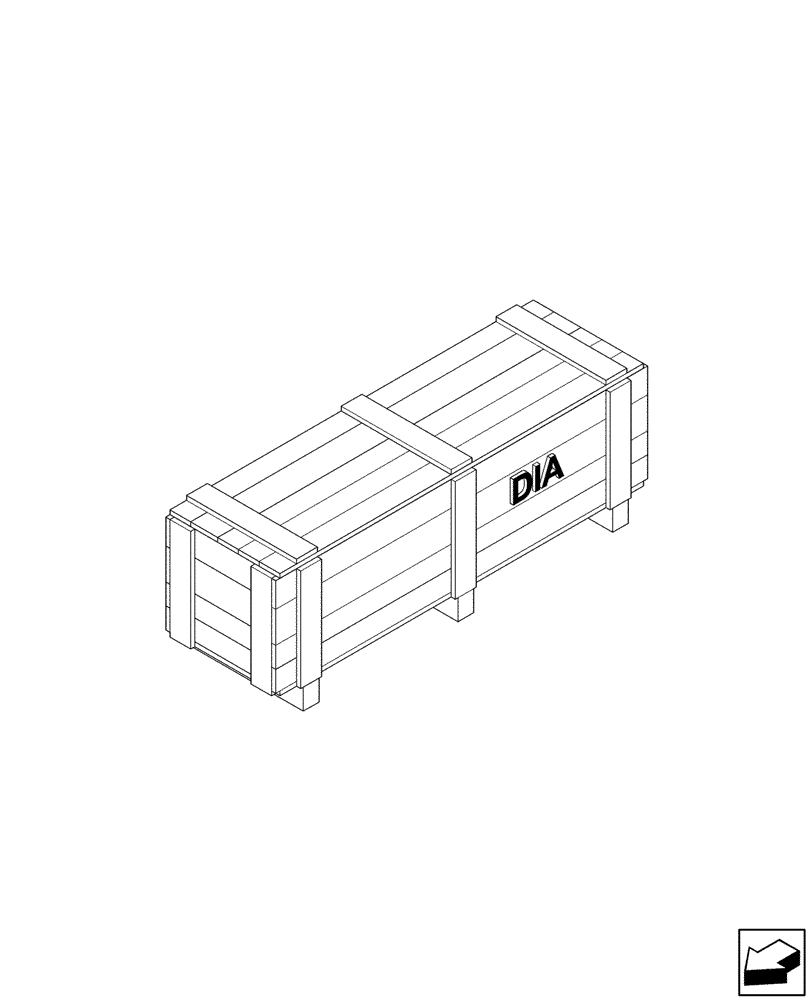

Запчасти Case 580SN (88.100.35[000]) - DIA KIT, HYDRAULIC SYSTEM (88) - ACCESSORIES

1

47357827

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 47357896

1шт.

Valid for 590SN Model Only, W/Pilot Control & Standard Dipper

1шт.

1

47359953

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 47357896

1шт.

Valid for 590SN Model Only, W/Pilot Control & Standard Dipper

1шт.

2

47358915

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 47358921

1шт.

Valid for 580SN, 580SN WT Models Only, W/Pilot Control & Standard Dipper

1шт.

2

47359725

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 47358921

1шт.

Valid for 580SN, 580SN WT Models Only, W/Pilot Control & Extendable Dipper

1шт.

3

84546986

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 84546987

1шт.

Valid for 580N, 580SN, 580SN WT Models Only, W/Mechanical Control & Standard Dipper

1шт.

3

84546989

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 84546987

1шт.

Valid for 580N, 580SN, 580SN WT Models Only, W/Mechanical Control & Extendable Dipper

1шт.

4

84546990

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 84546991

1шт.

Valid for 590SN Model Only, W/Mechanical Control & Standard Dipper

1шт.

4

84546992

CONSTRUCTION DIA

Uni-Directional. Instruction P/N 84546991

1шт.

Valid for 590SN Model Only, W/Mechanical Control & Extendable Dipper

1шт.

5

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo. Instruction P/N 47662913

1шт.

Valid for 580SN, 580SN WT Models Only, W/Pilot Control & Standard Dipper

1шт.

6

47662029

CONSTRUCTION DIA

Uni-Auxiliary to Combo. Instruction P/N 47662032

1шт.

Valid for 580N, Model Only, W/Pilot Control & Extendable Dipper

1шт.

7

47662033

CONSTRUCTION DIA

Uni-Auxiliary to Combo. Instruction P/N 47662036

1шт.

Valid for 580SN, 590SN Models Only, W/Auxiliary Hydraulic, Pilot Control & Extendable Dipper

1шт.

8

84487512

KIT

Uni-Auxiliary. Instruction P/N 84487513

1шт.

Valid for 580N Model Only, W/Pilot Control & Standard Dipper

1шт.

9

84396879

CONSTRUCTION DIA

Uni to Combo Auxiliary. Instruction P/N 84493064

1шт.

Valid for All Models, W/Mechanical Control & Extendable Dipper

1шт.

10

47661834

CONSTRUCTION DIA

No-Auxiliary to Combo. Instruction P/N 47661836

1шт.

Valid for 580N Model Only, W/Pilot Control & Standard Dipper

1шт.

11

47662021

CONSTRUCTION DIA

No-Auxiliary to Combo. Instruction P/N 47662022

1шт.

Valid for 580SN, Model Only, W/Pilot Control & Extendable Dipper

1шт.

12

84546980

CONSTRUCTION DIA

No-Auxiliary to Combo Auxiliary. Instruction P/N 84546981

1шт.

Valid for 580N, 580SN, 580SN WT Models Only, W/Mechanical Control & Standard Dipper

1шт.

12

84546982

CONSTRUCTION DIA

No-Auxiliary to Combo Auxiliary. Instruction P/N 84546981

1шт.

Valid for 580N, 580SN, 580SN WT Models Only, W/Mechanical Control & Extendable Dipper

1шт.

13

84546983

CONSTRUCTION DIA

No-Auxiliary to Combo Auxiliary. Instruction P/N 84546984

1шт.

Valid for 590SN, Model Only, W/Mechanical Control & Standard Dipper

1шт.

13

84546985

CONSTRUCTION DIA

No-Auxiliary to Combo Auxiliary. Instruction P/N 84546984

1шт.

Valid for 590SN, Model Only, W/Mechanical Control & Extendable Dipper

1шт.

14

47501542

CONSTRUCTION DIA

No-Auxiliary to Combo. Instruction P/N 47607733

1шт.

Valid for 590SN, Model Only, W/Pilot Control & Extendable Dipper

1шт.

15

47501543

CONSTRUCTION DIA

No-Auxiliary to Combo. Instruction P/N 47607727

1шт.

Valid for 580SN, Model Only, W/Pilot Control & Standard Dipper

1шт.

16

47501544

CONSTRUCTION DIA

No-Auxiliary to Combo. Instruction P/N 47607728

1шт.

Valid for 590SN, Model Only, W/Pilot Control & Standard Dipper

1шт.

17

47501545

CONSTRUCTION DIA

No-Auxiliary to Combo. Instruction P/N 47607739

1шт.

Valid for 590N, Model Only, W/Pilot Control & Standard Dipper

1шт.

18

47501547

CONSTRUCTION DIA

No-Auxiliary to Combo. Instruction P/N 47613669

1шт.

Valid for 580N, Model Only, W/Pilot Control & Extendable Dipper

1шт.

19

47542235

CONSTRUCTION DIA

Bucket 82 Inch 4 in 1. Instruction P/N 47540575

1шт.

Valid for 580N, 580SN Models Only

1шт.

20

47650948

CONSTRUCTION DIA

Mechanical Coupler Upgrade for Standard Dipper. Instruction P/N 47651699

1шт.

Valid for 580N, 580SN Models Only

1шт.

21

47680039

CONSTRUCTION DIA

Mechanical Coupler Upgrade for Extendable Dipper. Instruction P/N 47680041

1шт.

Valid for 580N, Model Only

1шт.

22

47858495

CONSTRUCTION DIA

Ride Control Non regulated TLB. Instruction P/N 47858494

1шт.

Valid for All Models

1шт.

23

47822050

CONSTRUCTION DIA

Universal Backhoe Coupler. Instruction P/N 47821566

1шт.

Valid for 580N, 580SN Models Only, W/Standard Dipper

1шт.

23

47822051

CONSTRUCTION DIA

Universal Backhoe Coupler. Instruction P/N 47821566

1шт.

Valid for 590SN Model Only, W/Standard Dipper

1шт.

23

47822052

CONSTRUCTION DIA

Universal Backhoe Coupler. Instruction P/N 47821566

1шт.

Valid for 580N, 580SN Models Only, W/Extendable Dipper

1шт.

23

47822053

CONSTRUCTION DIA

Universal Backhoe Coupler. Instruction P/N 47821566

1шт.

Valid for 590SN Model Only, W/Extendable Dipper

1шт.

24

84561133

CONSTRUCTION DIA

Power Lift. Instruction P/N 84561134

1шт.

Valid for 580SN Model Only

1шт.

25

47761898

VALVE, PRESSURE CONT

Valve, Pressure Reducing, Pilot Manifold.

1шт.

Valid for All Models

1шт.

26

47593980

CONSTRUCTION DIA

Dipper Oscillation. Instruction P/N 47601541

1шт.

Valid for All Models

1шт.

27

87366503

HYDRAULIC VALVE

Bi Auxiliary Priority Valve Section, Pilot Control.

1шт.

Valid for 580N, 580SN, 580SN WT, Models Only, W/Pilot Control

1шт.

28

47670289

SERVICE KIT

Dual Auxiliary Pilot Control, Standard Dipper

1шт.

Valid for 580N, 580SN, 590SN, Models Only, W/Pilot Control & Standard Dipper

1шт.

29

47670543

SERVICE KIT

Dual Auxiliary, Pilot Control, Extendable Dipper, Service

1шт.

Valid for 580SN, 590SN WT, Models Only, W/Pilot Control & Extendable Dipper

1шт.

30

84222040

CONSTRUCTION DIA

Field Service TLB Pilot Vibration. Instruction P/N 84376315

1шт.

Valid for 580N Model Only, W/Pilot Control

1шт.

31

84300153

SERVICE KIT

Auxiliary Quick Disconnect.

1шт.

Valid for All Models

1шт.

32

84376312

CONSTRUCTION DIA

Bi Auxiliary Backhoe Valve Section, Pilot Control.

1шт.

Valid for 580N, 580SN, 580SN WT Models Only, W/Pilot Control

1шт.

33

84412227

SERVICE KIT

Dual Auxiliary, Pilot Control, Extendable Dipper.

1шт.

Valid for All Models W/Pilot Control & Extendable Dipper

1шт.

34

84412228

SERVICE KIT

Dual Auxiliary, Pilot Control, Standard Dipper.

1шт.

Valid for All Models, W/Pilot Control & Standard Dipper

1шт.

35

84490914

SERVICE KIT

Extendable Dipper Conversion.

1шт.

Valid for All Models

1шт.

36

84484664

CONSTRUCTION DIA

Exavator Control Pattern. Instruction P/N 84484671

1шт.

Valid for All Models

1шт.

37

84466981

SERVICE KIT

Extendable Dipper Conversion.

1шт.

Valid for 590SN, Model Only

1шт.

38

84588432

CONSTRUCTION DIA

Dipper Lock Valve. Instruction P/N 84588443

1шт.

Valid for 580N, Model Only

1шт.

39

84588434

CONSTRUCTION DIA

Dipper Lock Valve. Instruction P/N 84588445

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

40

84588435

CONSTRUCTION DIA

Dipper Lock Valve. Instruction P/N 84588447

1шт.

Valid for 590SN, Model Only

1шт.

41

84588436

CONSTRUCTION DIA

Boom Lock Valve. Instruction P/N 84588444

1шт.

Valid for 580N, Model Only

1шт.

42

84588439

CONSTRUCTION DIA

Boom Lock Valve. Instruction P/N 84588448

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

43

84588441

CONSTRUCTION DIA

Boom Lock Valve. Instruction P/N 84588449

1шт.

Valid for 590SN, Model Only

1шт.
