Запчасти Case 580SN (88.100.21[001]) - DIA KIT, REMOTE TRANSMISSION FILTER (88) - ACCESSORIES

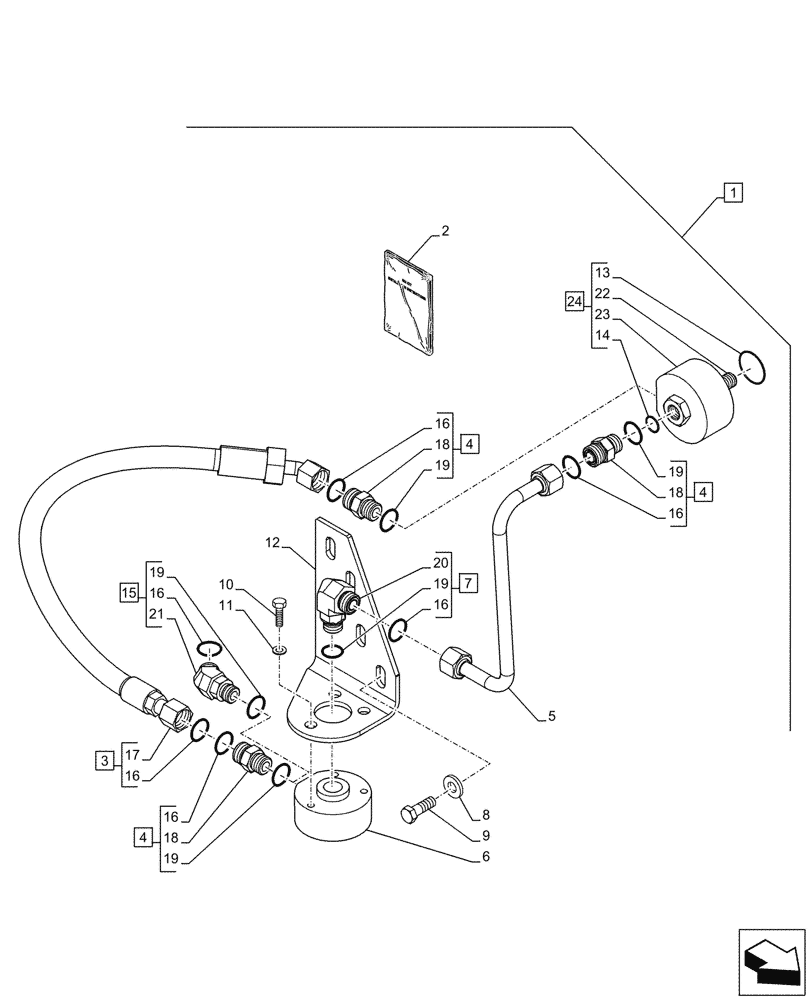

Схема запчастей Case 580SN - (88.100.21[001]) - DIA KIT, REMOTE TRANSMISSION FILTER (88) - ACCESSORIES
8
7
15
16
19
4
23
22
20
24
5
16
11
4
18
4
14
16
16
18
1
21
9
19
2
3
16
19
16
19
13
17
19
10
6
12
18

Артикул

Название

Примечание

Количество

1

47917016

CONSTRUCTION DIA

Remote Transmission Filter, Incl 2 - 24

1шт.

2

47917021

INSTRUCTION

1шт.

3

47917758

HYDRAULIC HOSE

16mm ID x 775mm L, Incl 16 (Qty 2), 17

1шт.

4

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 16 (Qty 1), 18 (Qty 1), 19 (Qty 1)

3шт.

5

47918740

TUBE

1шт.

6

47917004

FILTER HEAD

1шт.

7

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 16 (Qty 1), 19 (Qty 1), 20

1шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

10

412247

BOLT,Hex, M8 x 25mm, Cl 8.8

3шт.

11

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

12

47917007

BRACKET

1шт.

13

83930703

O-RING

1шт.

14

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

15

87301491

45 ELBOW

ASSY, Incl 16 (Qty 1), 19 (Qty 1), 21

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

17

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

3шт.

19

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5шт.

20

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

1шт.

21

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 15

1шт.

22

47928196

HYD CONNECTOR

1шт.

23

NSS

NOT SOLD SEPARAT

Cover, Incl in 24

1шт.

24

47917006

CAP

ASSY, Incl 13, 14, 22, 23

1шт.

Выбрано товаров: 24
