(84.912.AD[02]) - STANDARD DIPPER, HYDRAULIC COUPLER, BUSHING

Запчасти Case 580SN (84.912.AD[02]) - STANDARD DIPPER, HYDRAULIC COUPLER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

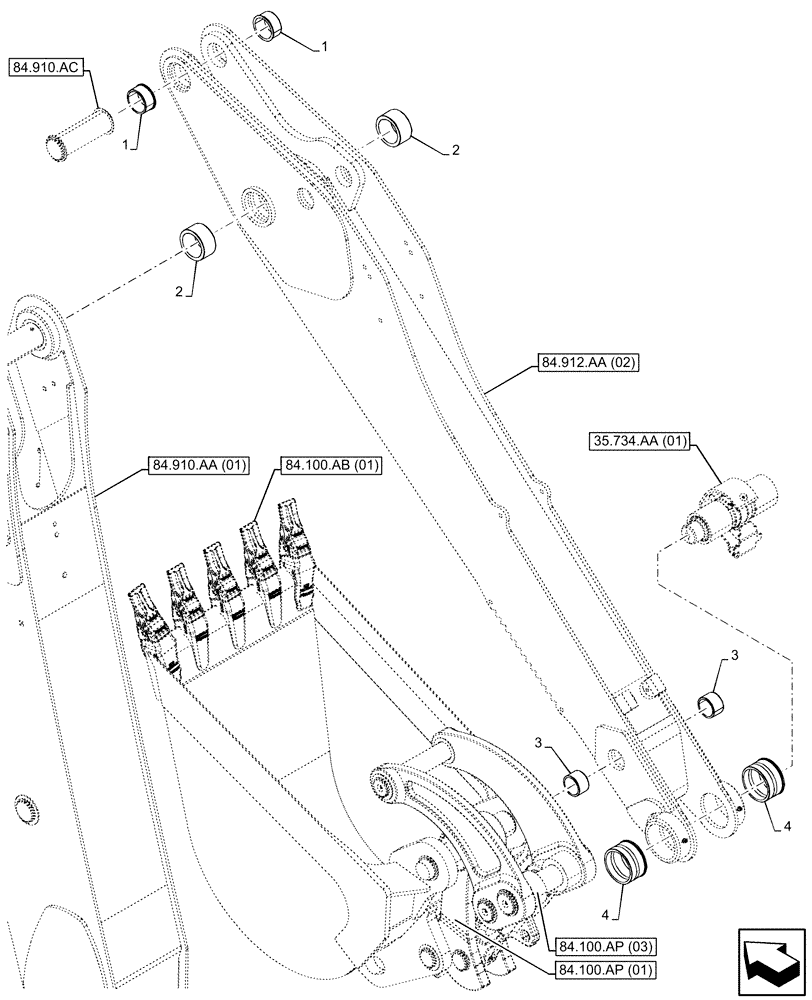

Схема запчастей Case 580SN - (84.912.AD[02]) - STANDARD DIPPER, HYDRAULIC COUPLER, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
35.734.aa (01)
1
3
4
4
1
2
3
2
84.100.ap (01)
84.100.ap (03)
84.910.ac
84.910.aa (01)
84.912.aa (02)
84.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84223633

BUSHING,60.19mm ID x 69.98mm OD x 34mm L

2шт.

2

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

4

400934A2

BUSHING,89.13mm ID x 105mm OD x 54mm L

2шт.

Выбрано товаров: 4
