(84.912.AC[01]) - EXTENDABLE DIPPER, W/ HYDRAULIC COUPLER

Запчасти Case 580SN (84.912.AC[01]) - EXTENDABLE DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

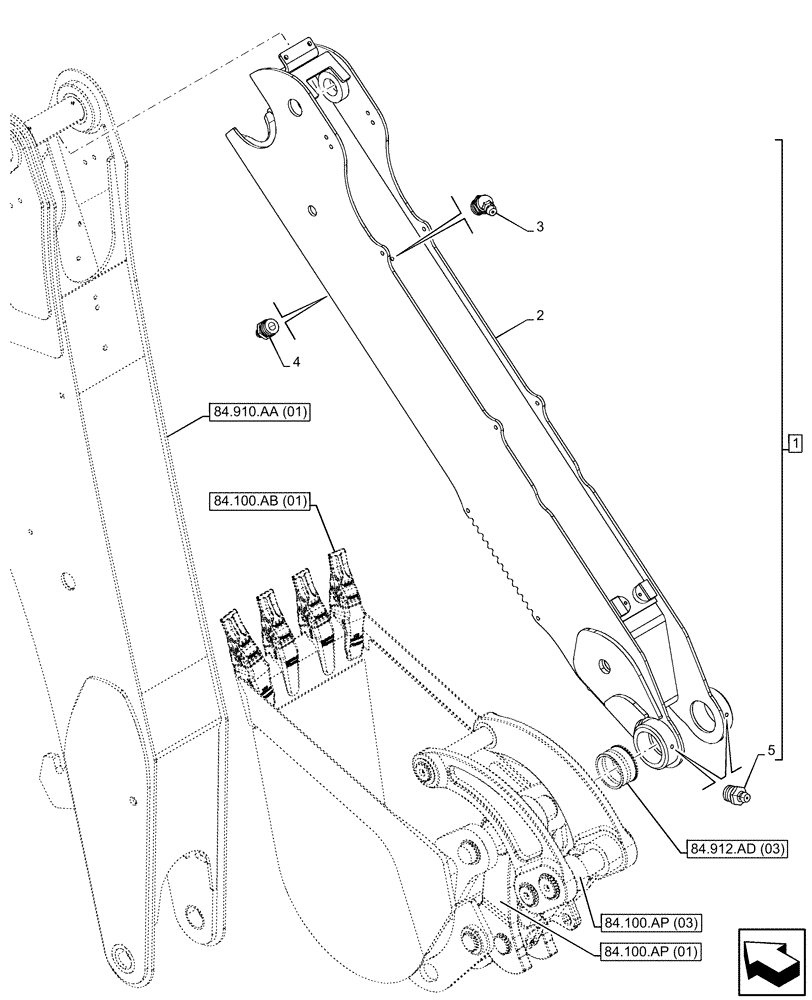

Схема запчастей Case 580SN - (84.912.AC[01]) - EXTENDABLE DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
84.100.ab (01)
4
3
2
1
5
84.100.ap (01)
84.100.ap (03)
84.912.ad (03)
84.910.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615275

DIPPER

ASSY, Mobile Arm, Incl 2 - 5

1шт.

See Dipper Component also in Figures 84.912.AD (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
