(84.100.AP[07]) - VAR - 442017 - BACKHOE BUCKET, COUPLER HYDRAULIC, 14FT/427MM

Запчасти Case 580SN (84.100.AP[07]) - VAR - 442017 - BACKHOE BUCKET, COUPLER HYDRAULIC, 14FT/427MM (84) - BOOMS, DIPPERS & BUCKETS

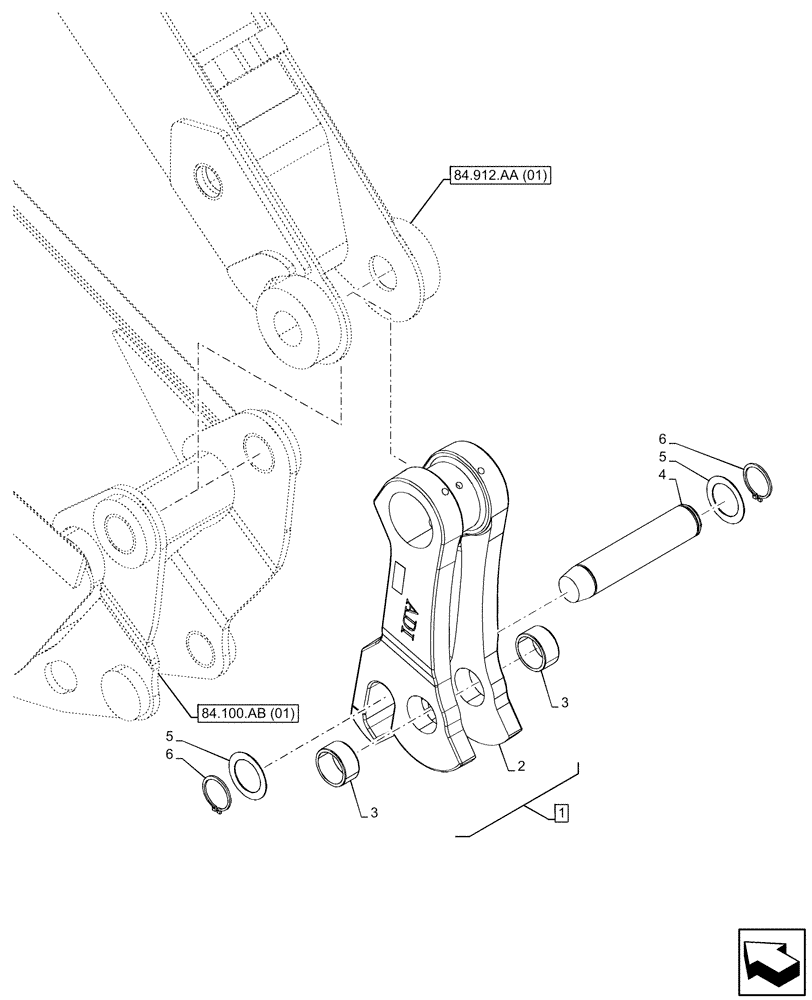

Схема запчастей Case 580SN - (84.100.AP[07]) - VAR - 442017 - BACKHOE BUCKET, COUPLER HYDRAULIC, 14FT/427MM (84) - BOOMS, DIPPERS & BUCKETS
84.912.aa (01)
6
3
2
6
3
4
5
5
1
84.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84300173

LINK ASSY.

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

4

84223653

PIN,50mm OD x 246.1mm L

1шт.

5

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

6

87016943

RING, SNAP,50mm ID , Ext

2шт.

Выбрано товаров: 6
