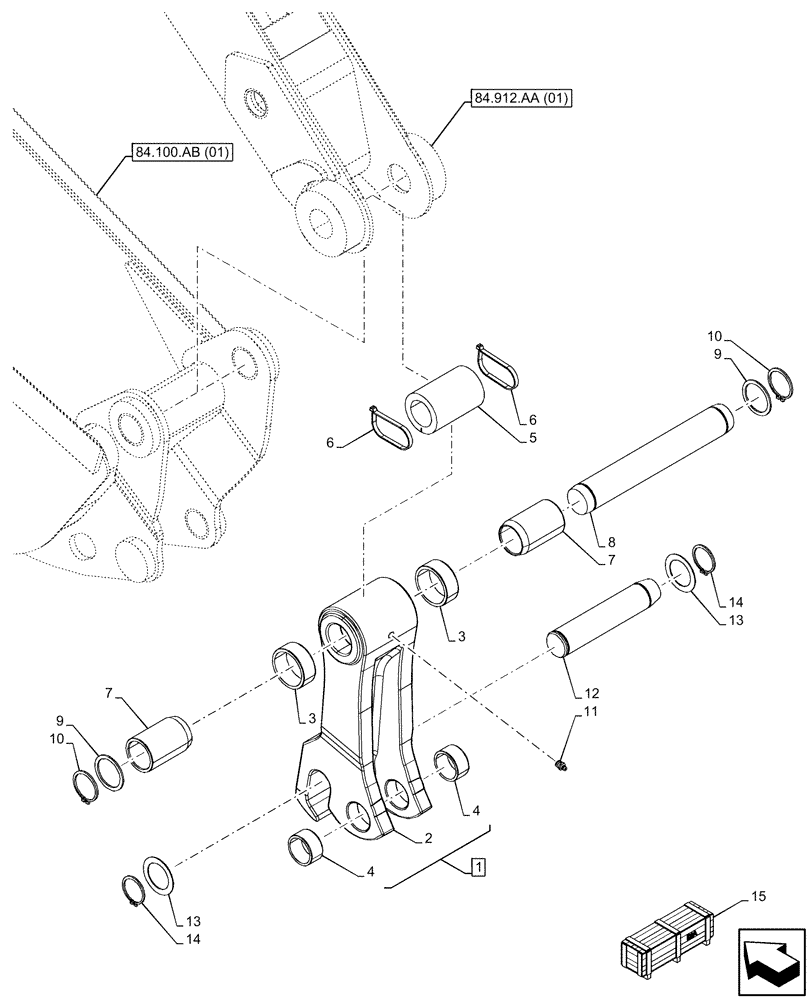

Запчасти Case 580SN (84.100.AP[01]) - BACKHOE BUCKET, MECHANICAL, COUPLING, STANDARD DIPPER, 14FT/427MM (84) - BOOMS, DIPPERS & BUCKETS

1

84229979

LINK ASSY.

Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

4

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

5

87682091

FOAM INSULATION

1шт.

6

305342A1

STRAP,450mm L

2шт.

7

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.

8

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

9

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

10

84233536

RING,55mm ID, Ext

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

12

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

13

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

14

87016943

RING, SNAP,50mm ID , Ext

2шт.

15

47650948

CONSTRUCTION DIA

Mechanical Coupler Upgrade for Standard Dipper, Incl 1 - 4, 8 - 11

1шт.

Valid for 580N, 580SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
