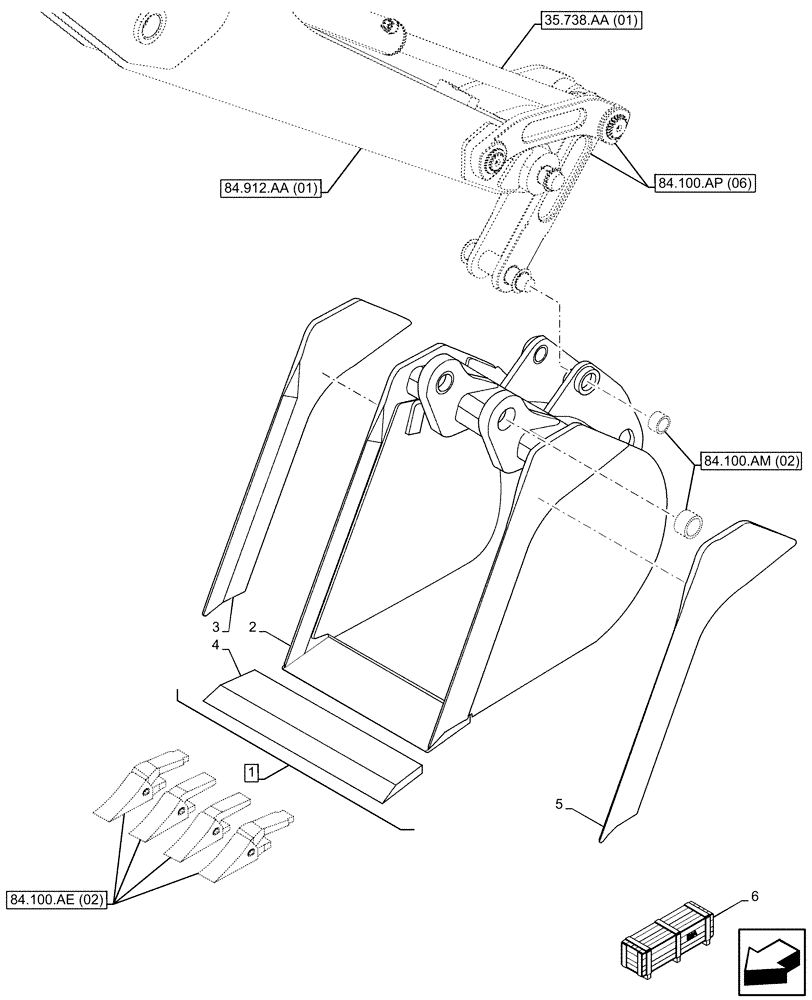

Запчасти Case 580SN (84.100.AB[02]) - VAR - 423068 - BUCKET, UNIVERSAL 18INCH/457MM (84) - BOOMS, DIPPERS & BUCKETS

1

84416557

BUCKET,18 Inch HD

ASSY, 18in/457mm, Universal, with 4 Teeth, Incl 2 - 5

1шт.

See Bucket Components also in Figure 82.100.AE (02), 82.100.AM (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

365942A1

CUTTING EDGE

RH

1шт.

4

NSS

NOT SOLD SEPARAT

Blade, Incl in 1

1шт.

5

365941A1

CUTTING EDGE

LH

1шт.

6

84467273

BUCKET

Bucket, 18in Universal, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
