Запчасти Case 580SN (55.518.AI) - VAR - 747853, 747854, 747855 - WINDOW, REAR, WIPER MOTOR (55) - ELECTRICAL SYSTEMS

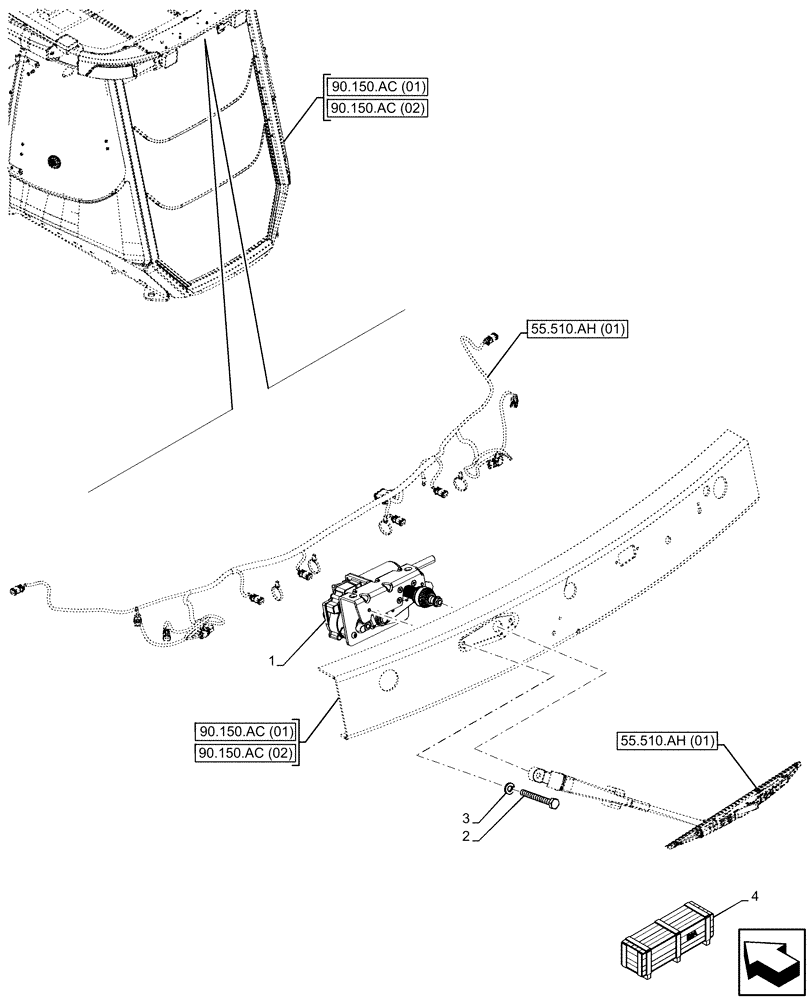

Схема запчастей Case 580SN - (55.518.AI) - VAR - 747853, 747854, 747855 - WINDOW, REAR, WIPER MOTOR (55) - ELECTRICAL SYSTEMS
55.510.ah (01)
4
3
2
1
90.150.ac (02)
90.150.ac (02)
90.150.ac (01)
90.150.ac (01)
55.510.ah (01)

Артикул

Название

Примечание

Количество

1

87669381

WIPER MOTOR,12V

1шт.

2

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

4шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

47605397

CONSTRUCTION DIA

Canopy Conversion Narrow, Incl 1 - 3

1шт.

Valid for 580N, 580SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

47605399

CONSTRUCTION DIA

Canopy Conversion Wide, Incl 1 - 3

1шт.

Valid for 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 9
