(55.511.AI[03]) - VAR - 423000, 442082 - CANOPY, REAR LIGHT, WIRE HARNESS

Запчасти Case 580SN (55.511.AI[03]) - VAR - 423000, 442082 - CANOPY, REAR LIGHT, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

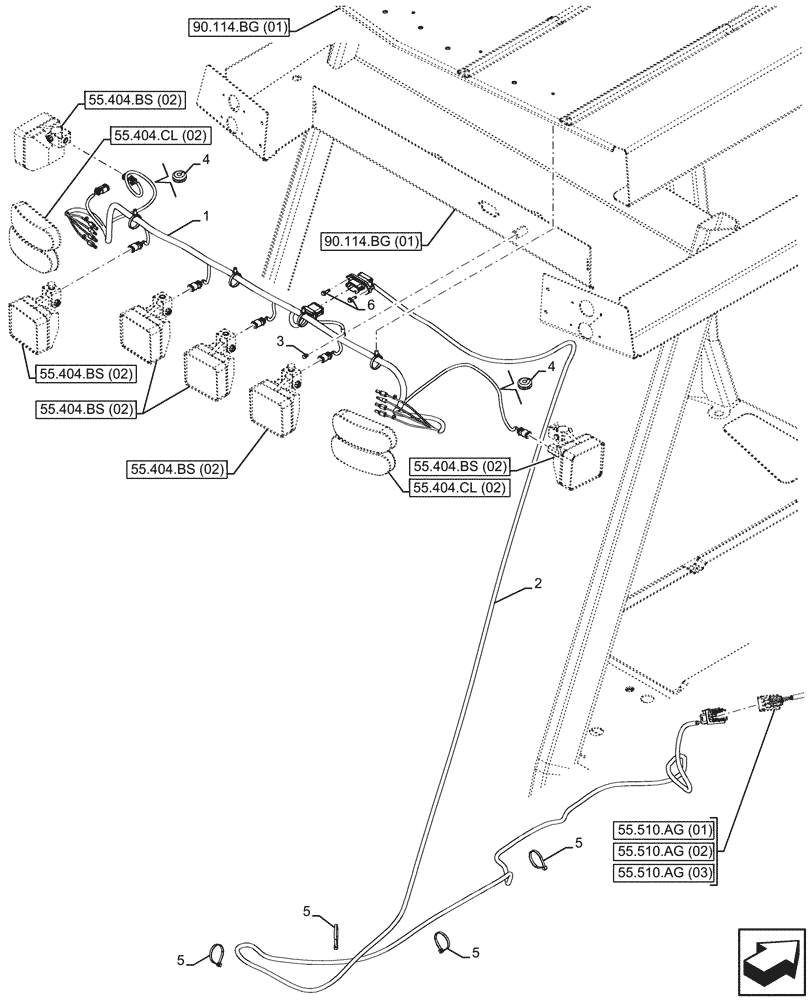

Схема запчастей Case 580SN - (55.511.AI[03]) - VAR - 423000, 442082 - CANOPY, REAR LIGHT, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.510.ag (02)
1
6
5
3
4
5
2
5
5
4
90.114.bg (01)
90.114.bg (01)
55.510.ag (03)
55.510.ag (01)
55.404.cl (02)
55.404.cl (02)
55.404.bs (02)
55.404.bs (02)
55.404.bs (02)
55.404.bs (02)
55.404.bs (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47533367

WIRE HARNESS

Rear Lights, Canopy

1шт.

2

47533359

WIRE HARNESS

C-Post, Canopy

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

1шт.

4

87370966

GROMMET,25.4mm OD, 7.94mm ID, 11.11mm L

2шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

6

280-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

2шт.
