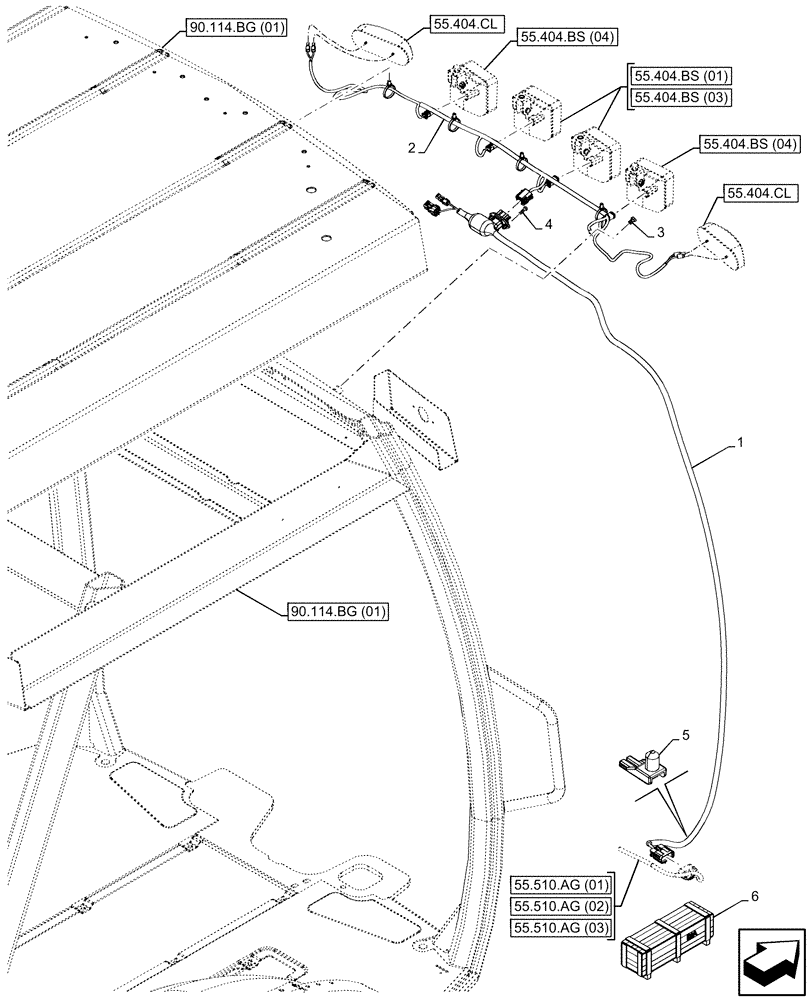

Запчасти Case 580SN (55.511.AF) - VAR - 423000, 442082, 442085 - CANOPY, FRONT LIGHT, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.510.ag (02)
3
1
4
2
6
5
55.404.bs (03)
55.404.cl
55.510.ag (03)
90.114.bg (01)
90.114.bg (01)
55.510.ag (01)
55.404.cl
55.404.bs (04)
55.404.bs (04)
55.404.bs (01)
№
Артикул
Название
Примечание
Количество
1
47533349
WIRE HARNESS
A-Post, Canopy
1шт.
2
47533334
WIRE HARNESS
Front Lights, Canopy
1шт.
3
128312A1
FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8
1шт.
4
280-14512
SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"
2шт.
5
87707841
CLIP,Hole DIA 6.35mm
1шт.
6
47605397
CONSTRUCTION DIA
Canopy Conversion Narrow, Incl 2
1шт.
Valid for 580N, 580SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
6
47605399
CONSTRUCTION DIA
Canopy Conversion Wide, Incl 2
1шт.
Valid for 580SN WT, 590SN Models Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 11
