Запчасти Case 580SN (55.302.AW[01]) - BATTERY, GROUND CABLE (55) - ELECTRICAL SYSTEMS

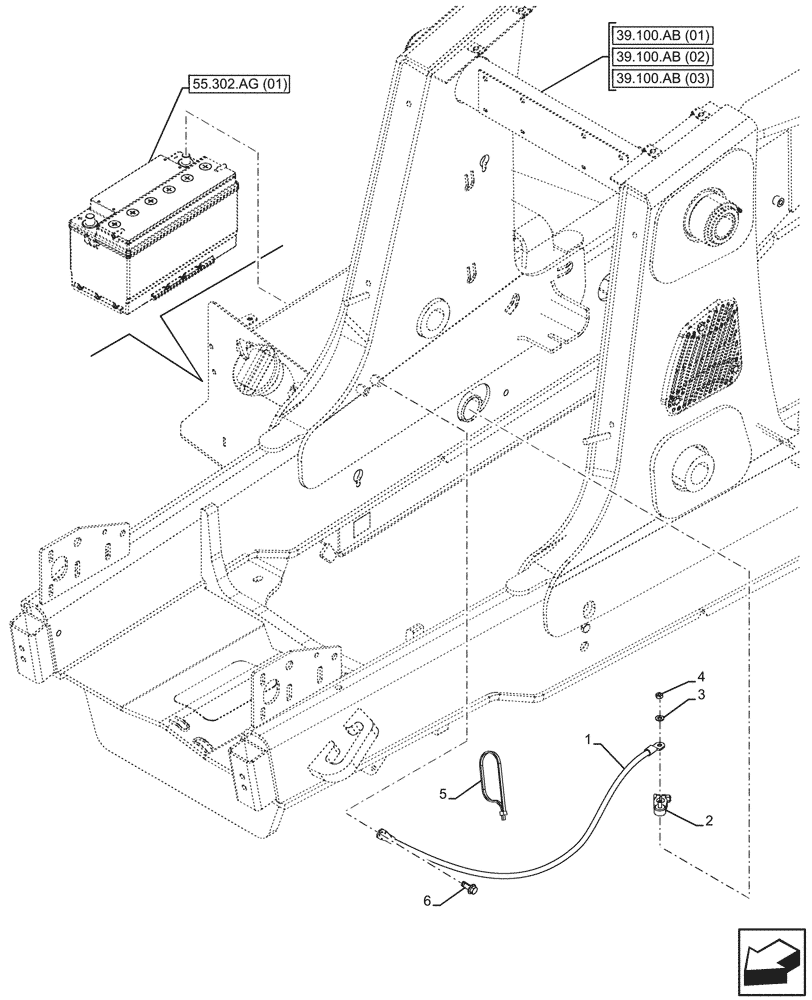

Схема запчастей Case 580SN - (55.302.AW[01]) - BATTERY, GROUND CABLE (55) - ELECTRICAL SYSTEMS
55.302.ag (01)
1
3
2
6
5
4
39.100.ab (03)
39.100.ab (02)
39.100.ab (01)

Артикул

Название

Примечание

Количество

1

87610680

NEG BATTERY CABLE,1200mm L

1шт.

2

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Battery, Negative

1шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

4

425-105

NUT,5/16"-18, G5

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

6

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 6
