Запчасти Case 580SN (55.302.AG[02]) - DUAL BATTERY (55) - ELECTRICAL SYSTEMS

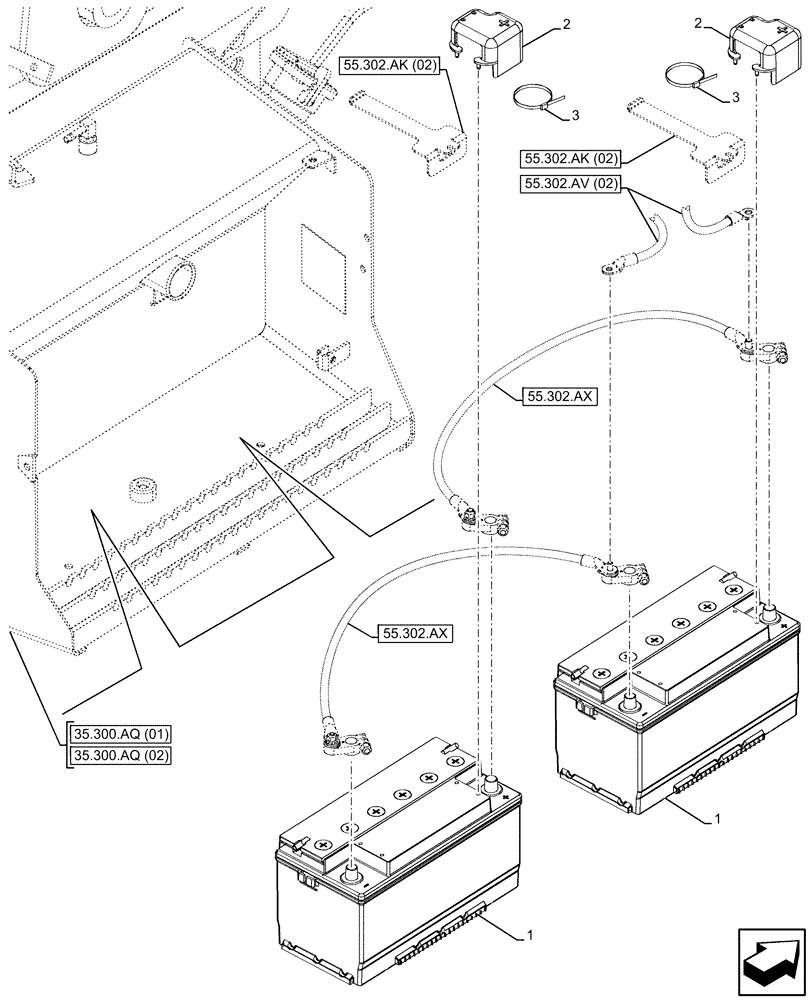

Схема запчастей Case 580SN - (55.302.AG[02]) - DUAL BATTERY (55) - ELECTRICAL SYSTEMS
55.302.av (02)
3
1
2
2
1
3
55.302.ax
55.302.ax
35.300.aq (02)
35.300.aq (01)
55.302.ak (02)
55.302.ak (02)

Артикул

Название

Примечание

Количество

1

87403835

WET BATTERY,Group 49, 12V, 850CCA

Dry, 12V, NA Version Only

2шт.

2

87664021

COVER

Protective, Battery Positive

2шт.

3

87486703

CABLE TIE,312mm L

2шт.

Выбрано товаров: 3
