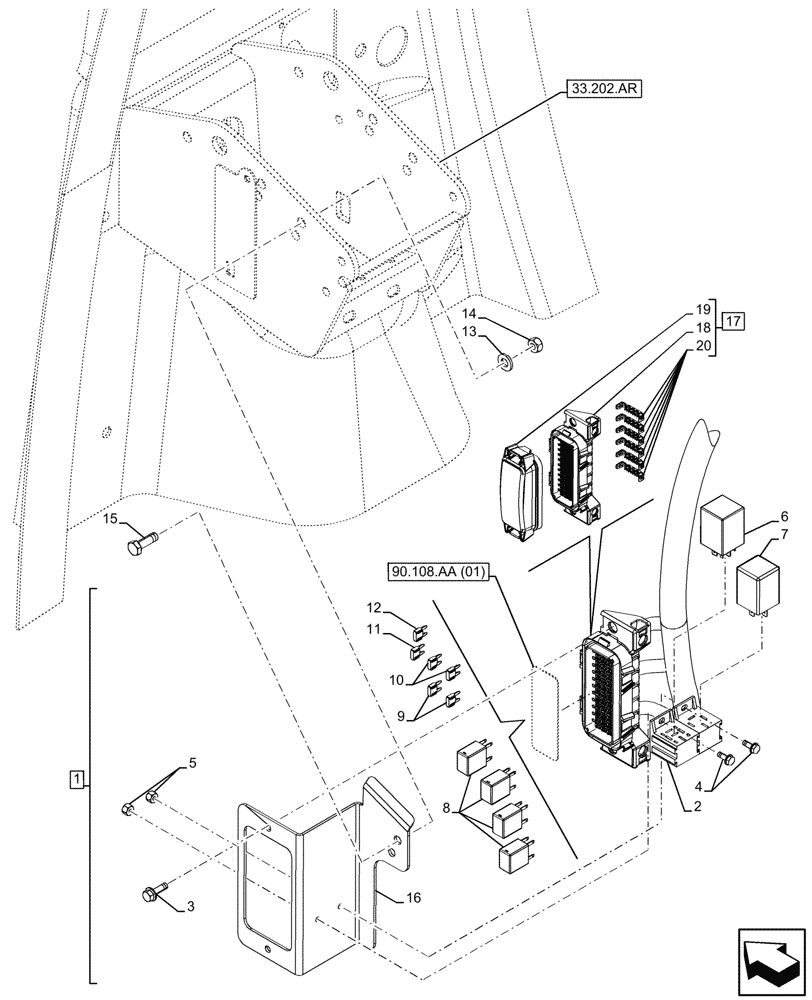

Запчасти Case 580SN (55.100.DO[01]) - VAR - 423058, 423059 - FRONT, PANEL, WIRE HARNESS, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS

1

84342267

WIRE HARNESS

Front Console, ASSY, Incl 2 - 12, 16 - 20

1шт.

See Front Console Wire Harness Components also in Figures 55.405.AX, 55.510.AN 01, 90.108.AA 01

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

4

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

5

231-24409

NUT,#10-32

2шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

Turn Signal and Hazard

1шт.

7

347706A3

RELAY,12V, 5A

Sealed Time Delay

1шт.

8

87655334

RELAY,12V, 35A, Micro

4шт.

9

121410A1

FUSE,5A, Mini, Tan

2шт.

10

121413A1

FUSE,15A, Mini, Blue

2шт.

11

121411A1

FUSE,7.5A, Mini, Brown

1шт.

12

121412A1

FUSE,10A, Mini, Red

1шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

16

84238043

BRACKET

Front Harness

1шт.

17

84380518

FUSE BOX

ASSY, Incl 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Support, Incl in 17

1шт.

19

84404932

COVER

1шт.

20

84342278

CONNECTING BLOCK

6шт.
