Запчасти Case 580SN (55.050.AA[01]) - VAR - 747853, 747855 - AIR CONDITIONING, PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS

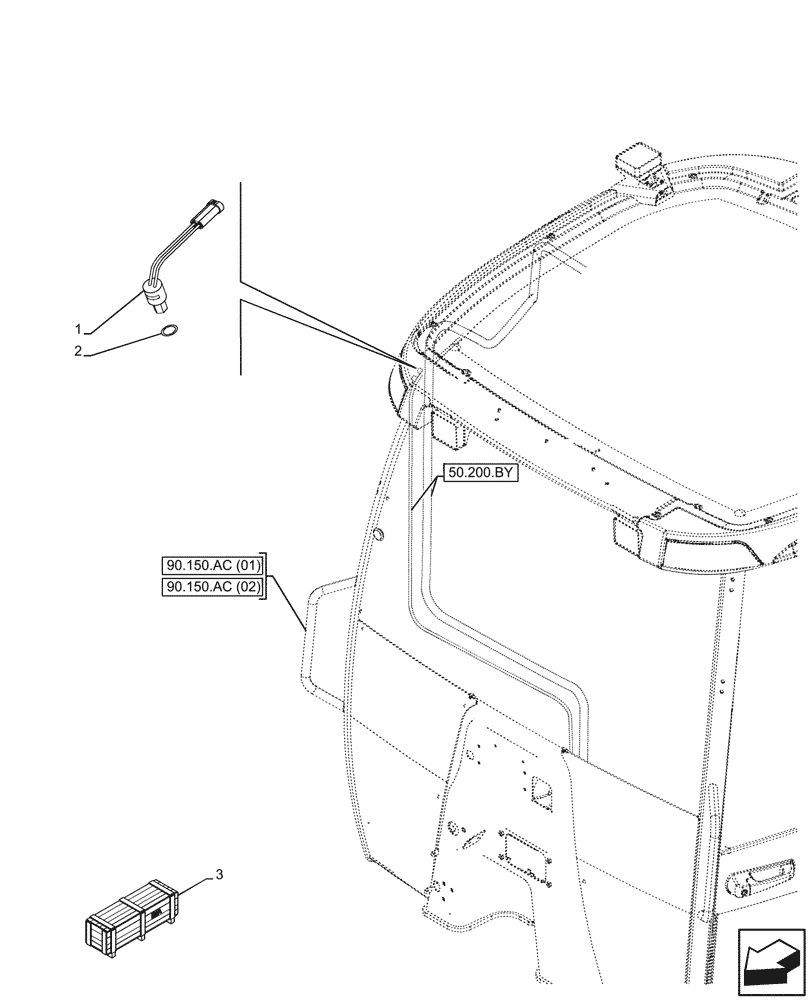

Схема запчастей Case 580SN - (55.050.AA[01]) - VAR - 747853, 747855 - AIR CONDITIONING, PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS
50.200.by
2
3
1
90.150.ac (02)
90.150.ac (01)

Артикул

Название

Примечание

Количество

1

87000228

SWITCH, A/C LOW PRES

1шт.

2

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

3

84499067

KIT

Air Conditioning Mechanical, Incl 1

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84412148

SERVICE KIT

Air Conditioning HPRC, Incl 1

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 8
