Запчасти Case 580SN (50.200.CA) - VAR - 747853, 747855 - AIR CONDITIONING, EVAPORATOR (50) - CAB CLIMATE CONTROL

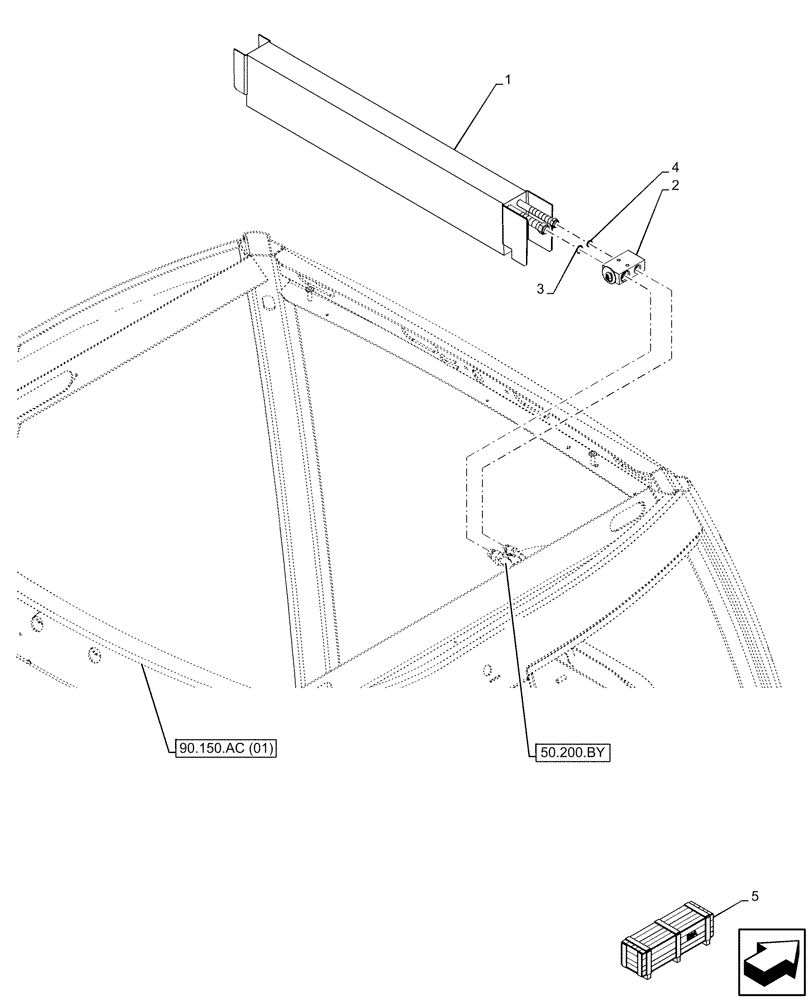

Схема запчастей Case 580SN - (50.200.CA) - VAR - 747853, 747855 - AIR CONDITIONING, EVAPORATOR (50) - CAB CLIMATE CONTROL
50.200.by
1
2
5
3
4
90.150.ac (01)

Артикул

Название

Примечание

Количество

1

360263A4

EVAPORATOR

1шт.

2

386535A1

VALVE

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

4

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

5

84499067

KIT

Air Conditioning Mechanical, Incl 1 - 4

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
