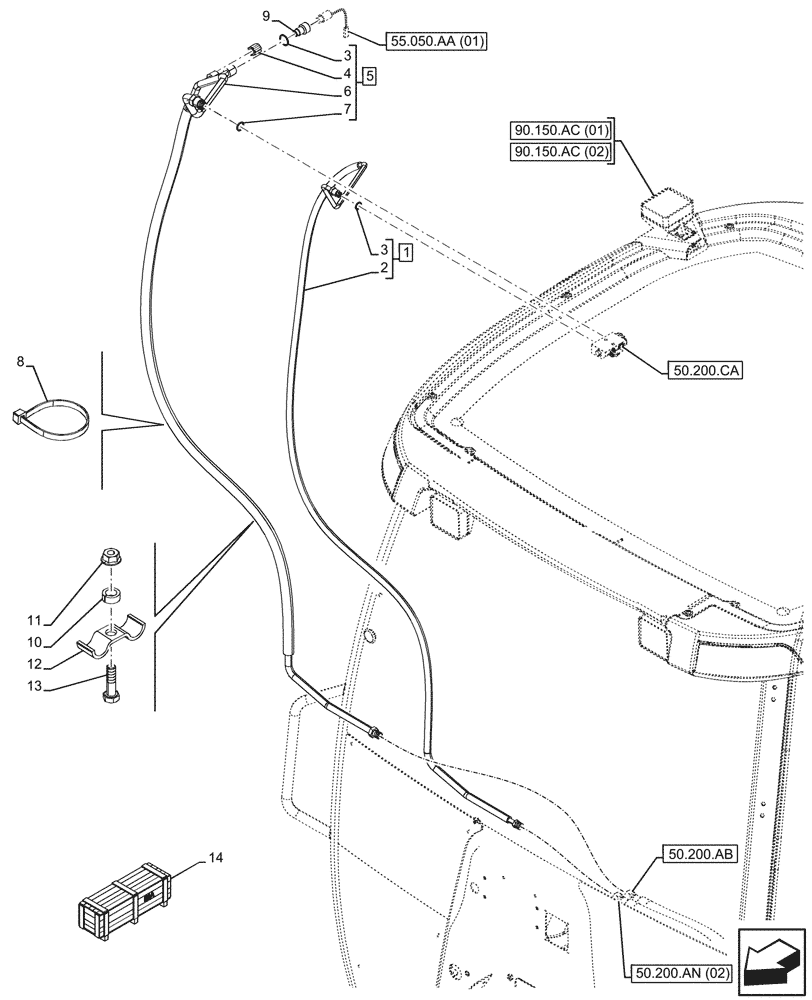

Запчасти Case 580SN (50.200.BY) - VAR - 747853, 747855 - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL

1

360256A1

A/C HOSE,0.375 Inch OD x 0.035 Inch Wall, Thermoplastic Core

Press Hose, ASSY Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose , Incl in 1

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65mm ID x 1.78 W 5/16 ID x 1/16

2шт.

4

122553A1

CAP

1шт.

5

360257A1

A/C HOSE,0.625 Inch OD x 0.049 Inch Wall, Thermoplastic Core

Suction Hose, ASSY, Incl 3 (Qty 1), 4, 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Hose , Incl in 5

1шт.

7

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14mm ID x 1.78 W 9/16 ID x 1/16

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

9

122081A1

FITTING,M10 x 1.25 x 26.43mm L

1шт.

10

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

12

D143427

CLAMP

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

14

84499067

KIT

Air Conditioning Mechanical, Incl 1, 2, 5, 6, 10 - 14

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

84412148

SERVICE KIT

Air Conditioning HPRC, Incl 1, 2, 5, 6, 10 - 14

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
