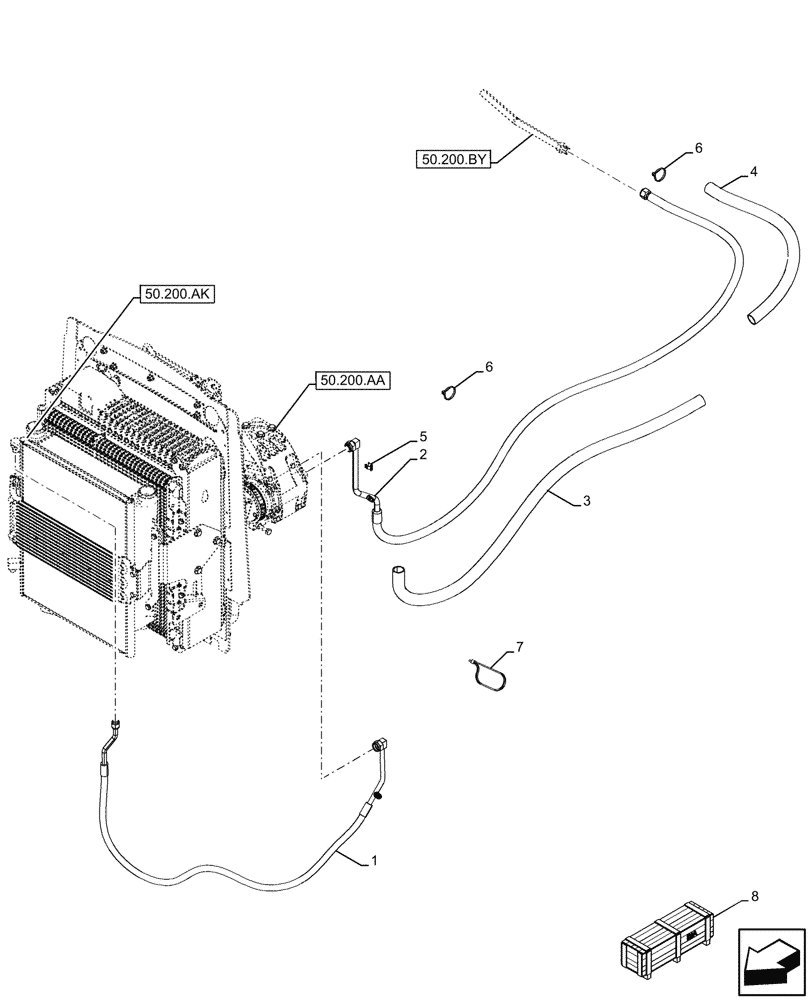

Запчасти Case 580SN (50.200.AB) - VAR - 747853, 747855 - AIR CONDITIONING, COMPRESSOR, LINES (50) - CAB CLIMATE CONTROL

1

84398074

A/C HOSE,1350mm L

A/C Compressor to Condenser

1шт.

2

87630220

HOSE ASSY.,16mm ID x 2425mm L

Cab to Compressor

1шт.

3

87726951

HOSE PROTECTION,26.3mm ID x 1200mm L

1шт.

4

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

5

84292413

MOUNTING CLIP,15mm ID

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

8

84412148

SERVICE KIT

Air Conditioning HPRC, Incl 1 - 3, 6, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
