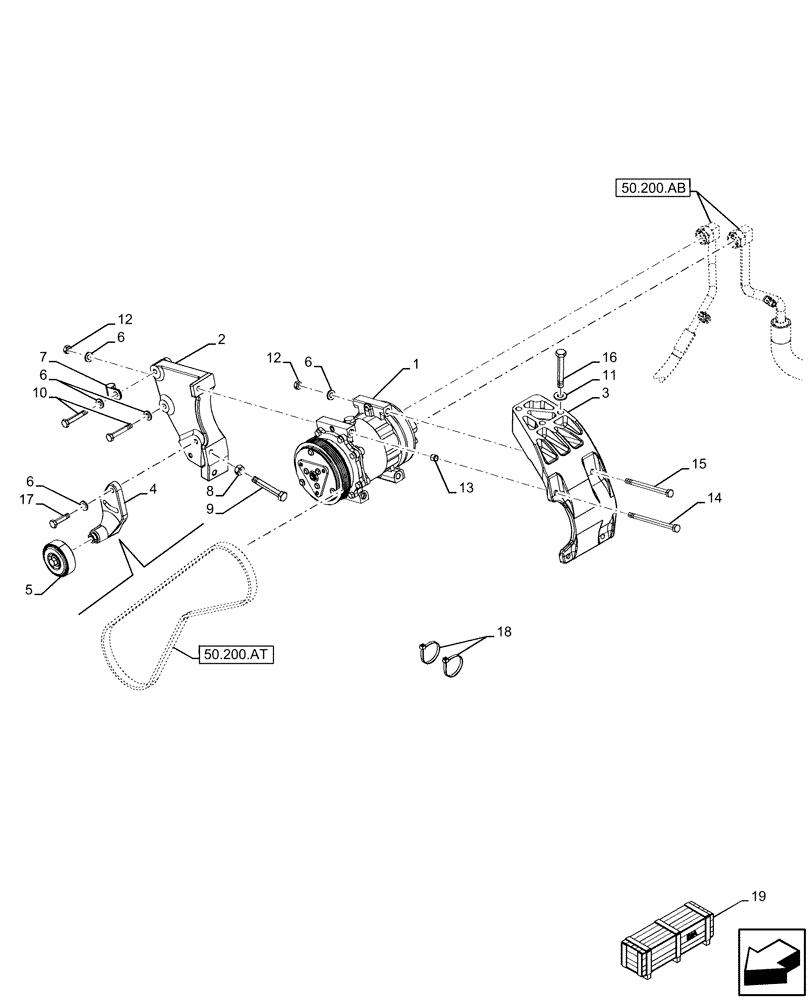

Запчасти Case 580SN (50.200.AA) - VAR - 747853, 747855 - AIR CONDITIONING, COMPRESSOR (50) - CAB CLIMATE CONTROL

1

84159488

AIRCOND. COMPRESSOR,12V, 43W, W/ Pulley 123mm D

Air Conditioning

1шт.

2

87551297

SUPPORT

Bracket, Lower Compressor Mounting, Grey

1шт.

3

87551296

BRACKET

Upper Compressor Mounting, Grey

1шт.

4

87551299

SUPPORT

Bracket, Idler Support, Grey

1шт.

5

87548073

IDLER

Puller

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

7

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

10

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

11

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

13

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

Spacer, Stud Dowel Ring

2шт.

14

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

2шт.

15

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

16

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

17

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

19

84412148

SERVICE KIT

Air Conditioning HPRC, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
