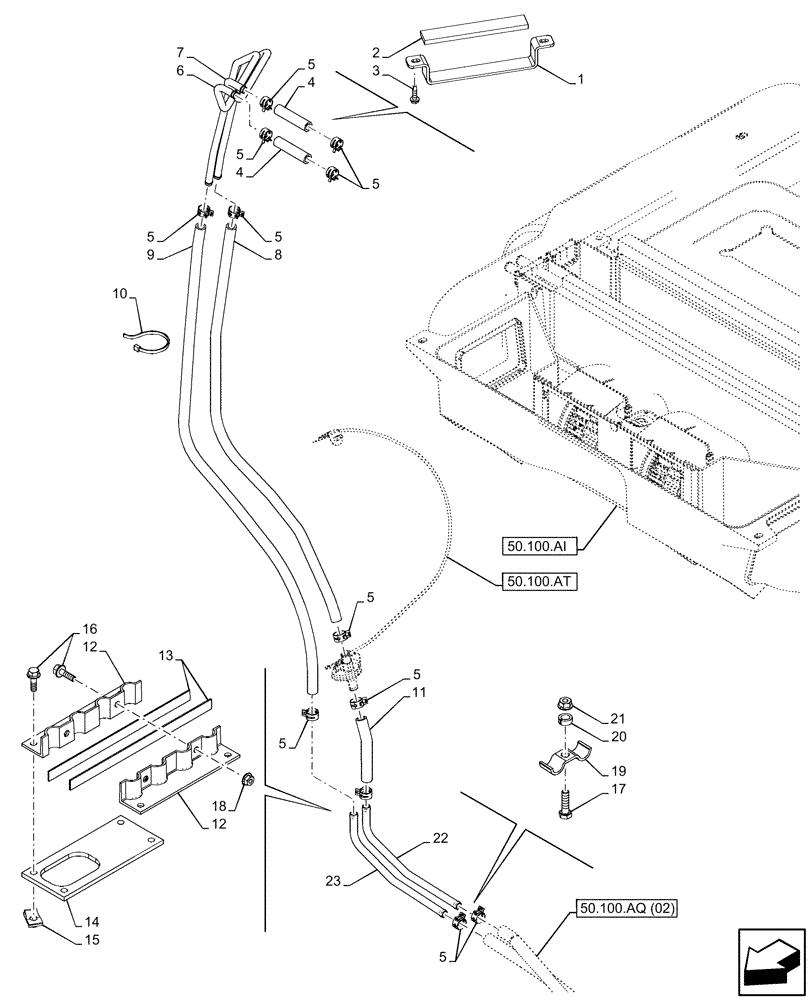

Запчасти Case 580SN (50.100.AQ[01]) - VAR - 747854 - CAB, HEATER HOSE (50) - CAB CLIMATE CONTROL

1

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

2

389402A1

RUBBER STRIP

1шт.

3

86625170

SCREW,Hwh, M10-16, 3/4"

2шт.

4

377222A1

HEATER HOSE,24mm ID x 100mm L

2шт.

5

1954736C1

HOSE CLAMP,#24

12шт.

6

400282A1

HEATER TUBE

1шт.

7

400280A1

HEATER TUBE

1шт.

8

448428A1

HEATER HOSE,24mm ID x 1175mm L, SAEJ2020R3

1шт.

9

368801A2

HEATER HOSE,24mm ID x 1361mm L, SAEJ2020R3

1шт.

10

305342A1

STRAP,450mm L

2шт.

11

448429A1

HEATER HOSE,24mm ID x 150mm L, SAEJ2020R3

1шт.

12

123980A1

SHIN

2шт.

13

181979A1

SEALING STRIP

2шт.

14

124011A1

GASKET,149mm L x 64mmL x 5mm L

1шт.

15

833-40406

NUT,M6, U

4шт.

16

388762A1

BRACKET

1шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

18

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

19

D143427

CLAMP

1шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

22

47628550

TUBE

1шт.

23

47628549

TUBE

1шт.
