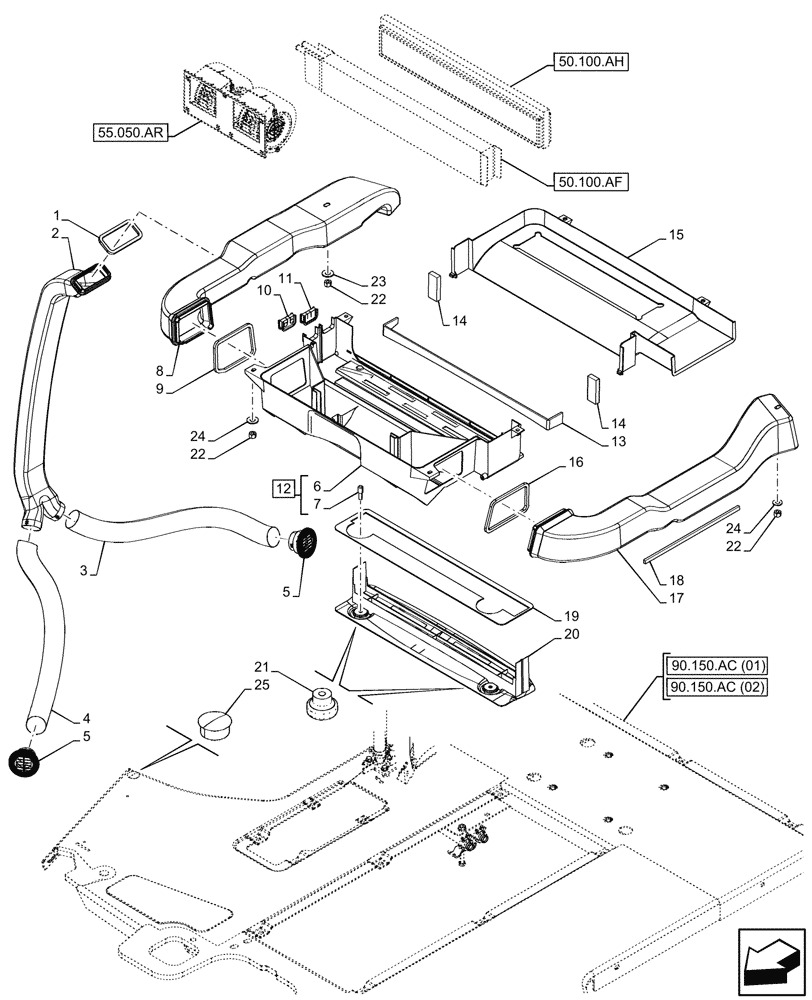

Запчасти Case 580SN (50.100.AI) - VAR - 747854 - CAB, HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL

1

368807A1

RUBBER SEAL,8mm Thk

1шт.

2

360255A1

DUCT

B-Post

1шт.

3

375392A1

AIR DUCT

63.50mm ID x 750mm L

1шт.

4

368818A1

AIR DUCT,63.5mm ID x 1015mm L

63.50mm ID x 1013mm L

1шт.

5

398986A1

VENT

Fixed, Round Wheat

2шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 12

1шт.

7

373995A1

INSERT

2шт.

8

360254A3

AIR DUCT

RH

1шт.

9

369249A1

RUBBER SEAL,183mm L

1шт.

10

403225A1

SEAL,62mm L

1шт.

11

403193A1

SEAL,62mm L

1шт.

12

360251A3

HOUSING

ASSY, Incl 6, 7

1шт.

13

403271A1

SEAL,882mm L

1шт.

14

377230A3

SEAL,94mm L

2шт.

15

360252A2

DUCT

1шт.

16

368805A1

FOAM INSULATION

1шт.

17

360253A3

AIR DUCT

LH

1шт.

18

368990A1

SEALING STRIP,13mm W x 432.9mm L x 8mm Thk

1шт.

19

382770A2

FOAM INSULATION,3mm Thk

1шт.

20

360261A1

TRAY

1шт.

21

398738A1

KNOB

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

25

353-410

PLUG,Dome, .875" hole, Nylon

2шт.
