(41.216.AN[02]) - FRONT AXLE, STEERING CYLINDER, 4WD

Запчасти Case 580SN (41.216.AN[02]) - FRONT AXLE, STEERING CYLINDER, 4WD (41) - STEERING

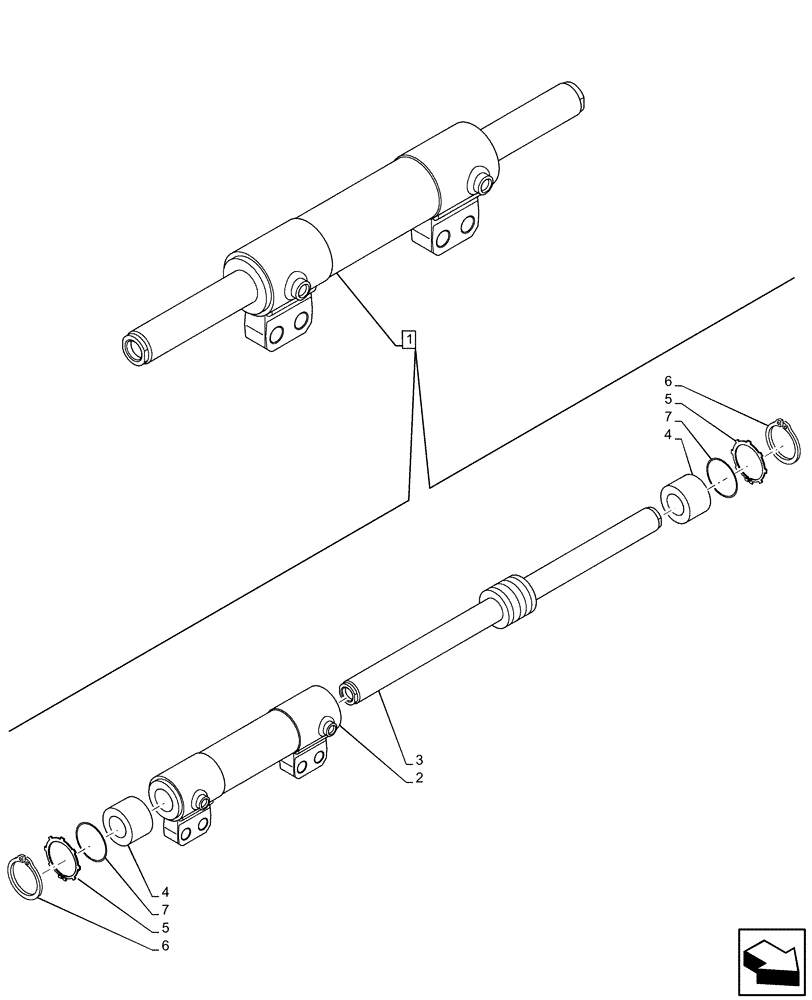

Схема запчастей Case 580SN - (41.216.AN[02]) - FRONT AXLE, STEERING CYLINDER, 4WD (41) - STEERING
3
2
7
5
1
4
6
4
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84264405

STEERING CYLINDER,Double Acting, 36mm Rod, 63mm Bore, 245mm Stroke

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Sleeve Protective Steering, Incl in 1

1шт.

3

84276950

ROD

Piston Steering Cylinder

1шт.

4

84276991

CYLINDER END CAP

Steering

2шт.

5

84276993

SNAP RING,63mm OD x 2mm Thk

Wire 63 x 2

2шт.

6

84276992

CIRCLIP,63mm Special

External

2шт.

7

84330972

SEAL KIT

Steering Cylinder

1шт.

Выбрано товаров: 7
