(41.216.AN[01]) - FRONT AXLE, STEERING CYLINDER, 4WD

Запчасти Case 580SN (41.216.AN[01]) - FRONT AXLE, STEERING CYLINDER, 4WD (41) - STEERING

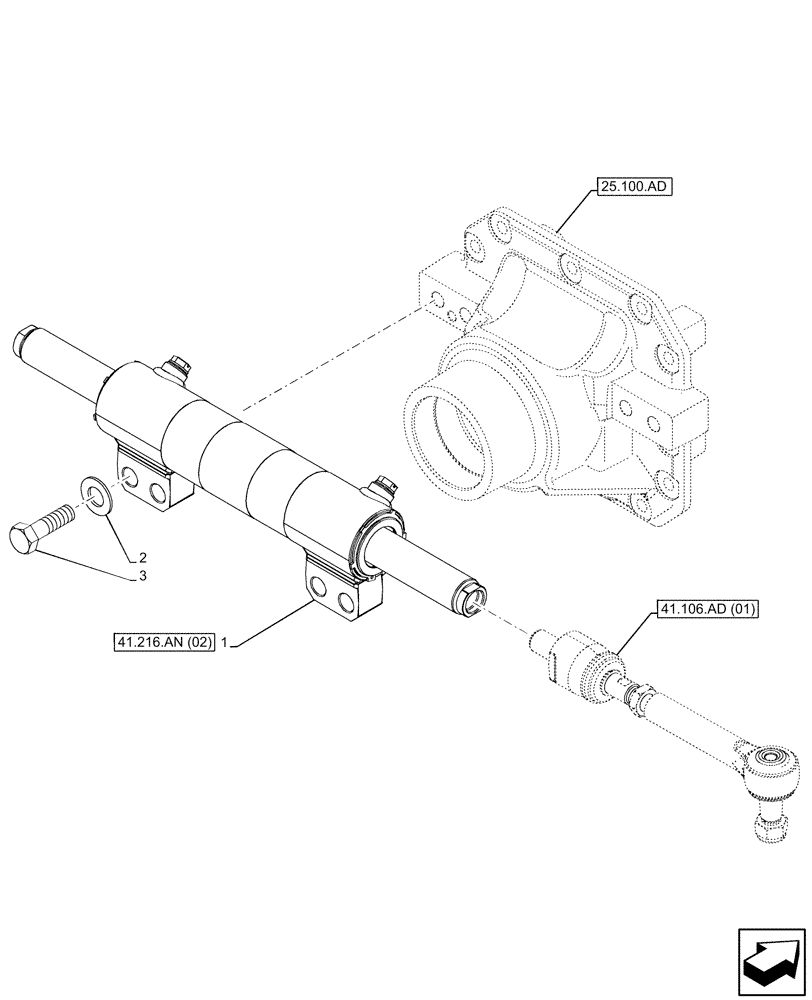

Схема запчастей Case 580SN - (41.216.AN[01]) - FRONT AXLE, STEERING CYLINDER, 4WD (41) - STEERING
41.216.an (02)
1
3
2
25.100.ad
41.106.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84264405

STEERING CYLINDER,Double Acting, 36mm Rod, 63mm Bore, 245mm Stroke

ASSY

1шт.

2

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.

3

11244634

BOLT,Hex, M18 x 1.5 x 60, 10.9

4шт.

Выбрано товаров: 3
