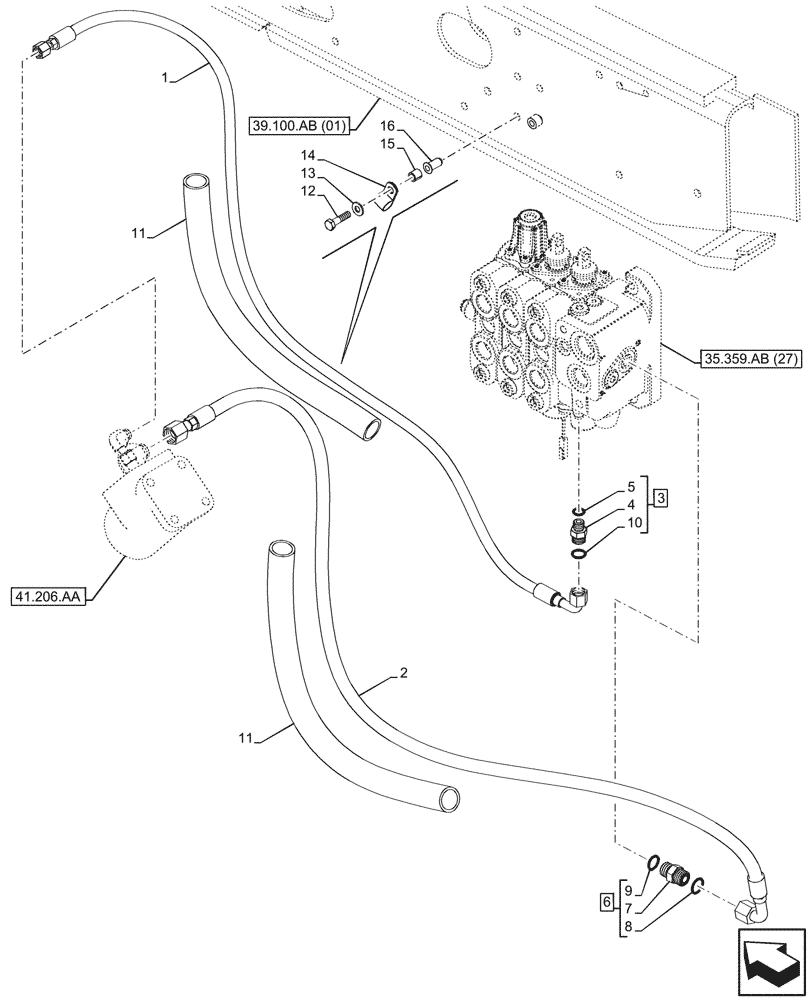

Запчасти Case 580SN (41.200.BZ[02]) - VAR - 747864 - CONTROL VALVE, STEERING VALVE, PILOT LINE (41) - STEERING

1

84284694

HOSE ASSY.,6.3mm ID x 1446mm L

Steering Pressure, 1617mm

1шт.

2

84358584

HOSE ASSY.,12.5mm ID x 1617mm L

Steering LS Pilot, 1446mm

1шт.

3

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 4, 5, 10

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

2шт.

12

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

14

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

15

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

16

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.
