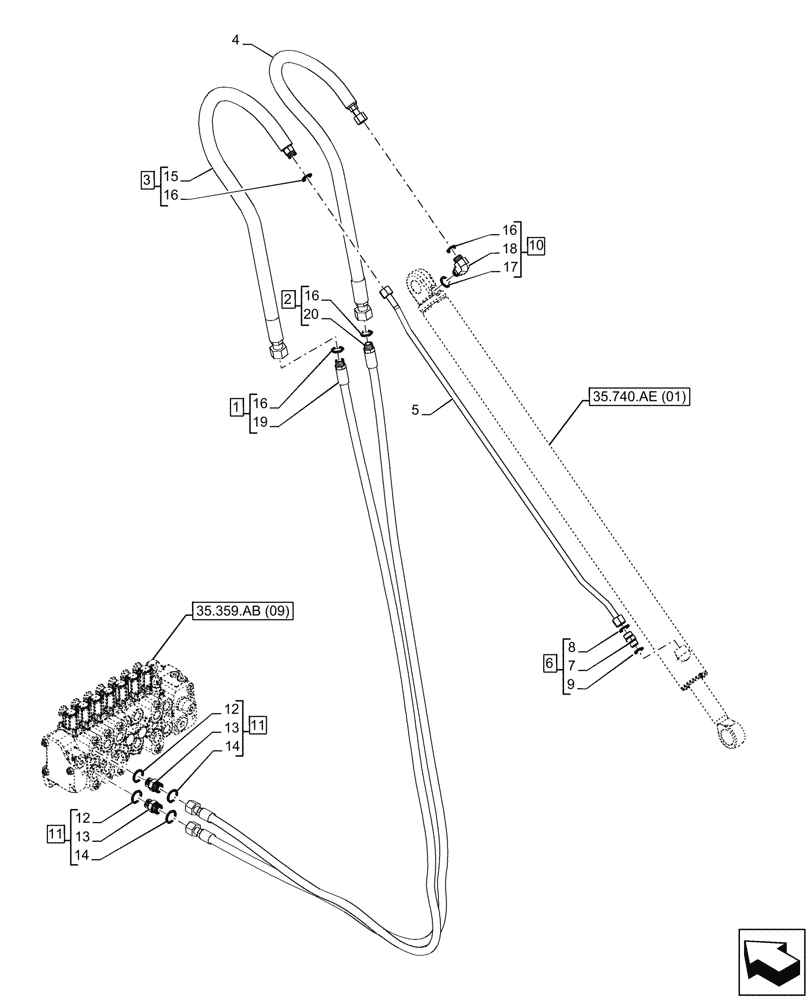

Запчасти Case 580SN (35.740.AC[02]) - VAR - 423076 -EXTENDABLE DIPPER, CYLINDER, LINE, SEVERE COLD WEATHER (35) - HYDRAULIC SYSTEMS

1

47829694

HYDRAULIC HOSE,16mm ID x 2950mm L

Valve to Backhoe - Cylinder Rod, ASSY, Incl 16 (Qty 1), 19

1шт.

2

47829693

HYDRAULIC HOSE,16mm ID x 2940mm L

Valve to Backhoe - Cylinder Head, ASSY, Incl 16 (Qty 1), 20

1шт.

3

47829695

HYDRAULIC HOSE,12.5mm ID x 845mm L

Backhoe Cylinder Rod, ASSY, Incl 15, 16 (Qty 1)

1шт.

4

47829696

HYDRAULIC HOSE,12.5mm ID x 840mm L

Backhoe Cylinder Head

1шт.

5

84295701

HYD TUBE

Backhoe Cylinder Rod, 1154mm L

1шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 16 (Qty 1), 17, 18

1шт.

11

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 10

1шт.

19

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.
